  11. Lathe, 220/440V Volts, 5 hp HP, 60 Hz, Three Phase 18 in Distance Between Centers

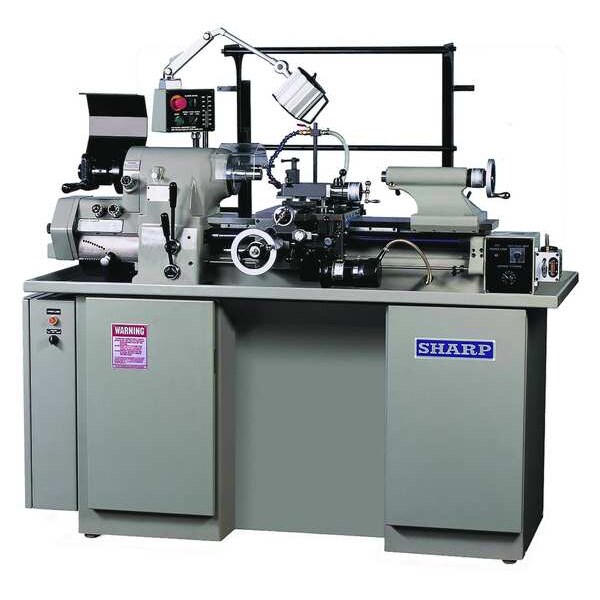

Sharp Lathe, 220/440V Volts, 5 hp HP, 60 Hz, Three Phase 18 in Distance Between Centers 1118H - main

Lathe, 220/440V Volts, 5 hp HP, 60 Hz, Three Phase 18 in Distance Between Centers

  • Mfr # 1118H

  • Zoro # G5091867

product price: $55,760.99
/ea
Additional $600.00 delivery surcharge applies per item.
See details

Key Features

Primary Application
Metal Turning
Motor HP
5
Phase
Three
Voltage
220/440V
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1118H
Zoro #
G5091867
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
5 29/50 ft
Bed Width (In.)
6-3/4
Gap Length (In.)
9-5/6
Overall Width
6 7/100 ft
Overall Length
72 in
Bed Width
6 3/4 in
Spindle Dia.
1.3580 in
Gap Length
18 in
Leadscrew Size
1 in x 8 TPI
Spindle Nose Diameter
2 19/100 in
Overall Depth
2 23/50 ft
Tailstock Diameter
1 7/20 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
5
Phase
Three
Voltage
220/440V
Frequency
60 Hz
Swing Over Bed (In.)
11
Distance Between Centers
18 in
Horsepower
5 hp
Swing In Gap (In.)
16-3/4
Cross Feed Rates
0.3125 to 4
Hz
60
Carriage Travel (In.)
17
Number of Threads (In.)
36
Tailstock Taper
MT2
Number of Spindle Speeds
Variable
Tailstock Travel (In.)
3-3/4
Swing Over Cross Slide (In.)
5-1/2"
Thread Range (mm)
9/32 to 2-45/64
Features
Adjustable Thread Length Control Stops, Beways with Turcite On Carriage and Bed for Oil Retention, Independent Electric Feed Rate Control On Carriage and Cross Slide, Quick Action Slide for Threading
Thread Range (In.)
11 to 108
Longitudinal Feed Rates
0.3125 to 7
Spindle Taper
MT-2
Number of Threads (mm)
34
Spindle Speed (RPM)
130 to 4000
Cross Travel (In.)
35
Coolant Tank Capacity
3 gal.
Includes
(2) 5C Collet Holder, 5C Collet Closer, Adjustable Tool Setting Gauges, American Tool Post, Chuck Guard, Coolant System, Drive Dog and Gear, Drive Plate, Halogen Work Light, Headstock Center, Leadscrew Cover, Spindle Nose Cover, Splash Guard
Compound Travel (In.)
3
Spindle Bore (In.)
1-1/8
Distance Between Centers (In.)
18
Number of Metric Threads
36
Application
Metal Turning
Min. Spindle Speed
130 RPM
Spindle Bore
1 1/4 in
Number of Inch Threads
36
Swing In Gap
9 in
Swing Over Bed
11 in
Swing Over Cross Slide
6 in
Max. Spindle Speed
4,000 RPM
Threads per Inch - Maximum
108
Cross Feed - Maximum
4 in/rev
Metric Thread - Maximum
2.7 mm
Metric Thread - Minimum
0.275 mm
Spindle Speed - Maximum
4,000 RPM
Includes Collet Closer
Collet Closer Included
Spindle Speed - Minimum
50 RPM
Longitudinal Feed - Maximum
7 in/rev
Maximum Compound Slide Travel
3 in
Includes Taper Attachment
No Taper Attachment
Series
1118H
Maximum Cross Slide Travel
6 in
Longitudinal Feed - Minimum
0.31 in/rev
Lathe Head Drive
Electronic Variable Speed
Cross Feed - Minimum
0.18 in/rev
Threads per Inch - Minimum
11
Swing Over Gap
9 in
Tailstock Spindle Travel
3 3/4 in

Description

Lathe, Distance Between Centers 18 in, Voltage 220/440V, Horsepower 5 hp, Min. Spindle Speed 130 RPM, Application Metal Turning, Overall Height 5 29/50 ft, Overall Length 72 in, Overall Width 6 7/100 ft, Max. Spindle Speed 4,000 RPM, Tailstock Taper MT2
