  11. Lathe, 220V AC Volts, 15 hp HP, 60 Hz, Three Phase 80 in Distance Between Centers

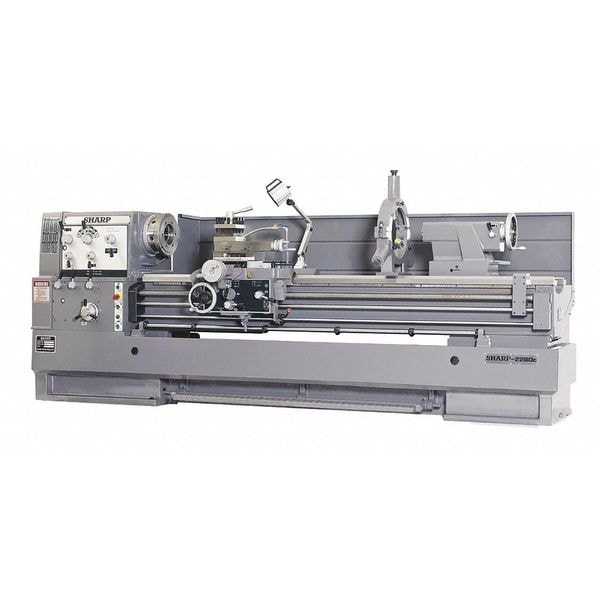

Sharp Lathe, 220V AC Volts, 15 hp HP, 60 Hz, Three Phase 80 in Distance Between Centers 2280B - main

Lathe, 220V AC Volts, 15 hp HP, 60 Hz, Three Phase 80 in Distance Between Centers

  • Mfr # 2280B

  • Zoro # G5061870

product price: $60,516.99
/ea
Additional $600.00 delivery surcharge applies per item.
See details

Key Features

Primary Application
Metal Turning
Motor HP
15
Phase
Three
Voltage
220V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2280B
Zoro #
G5061870
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Gap Length (In.)
14-1/2
Overall Length
137 in
Overall Height
50 in
Overall Width
40 1/2 in
Bed Width (In.)
15-3/4
Gap Length
14 1/2 in
Bed Width
15 3/4 in
Overall Depth
137 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
15
Phase
Three
Voltage
220V AC
Frequency
60 Hz
Swing Over Bed (In.)
22
Distance Between Centers
80 in
Horsepower
15 hp
Swing In Gap (In.)
31
Includes
(4) 16 in Jaw Chucks, 20 in Faceplate, 4-Way Carriage Stop, 4-Way Tool Post, Coolant System, Follow Rest, Halogen Light, Rapid Transverse on Longitudinal, Steady Rest, Tailstock, Tool Kit
Number of Spindle Speeds
12
Spindle Taper
MT-5
Carriage Travel (In.)
80
Cross Travel (In.)
14-3/4
Thread Range (In.)
2 to 56
Hz
60
Thread Range (mm)
2 to 56
Spindle Speed (RPM)
10 to 1000
Tailstock Travel (In.)
6-1/2
Compound Travel (In.)
7-3/4
Cross Feed Rates
0.001 to 0.094
Spindle Bore (In.)
4-47/64
Tailstock Taper
MT5
Number of Threads (In.)
44
Features
Camlock Spindle, Direct Selection for Inch/Metric Threads, One Piece Cast Meehanite Bed, Quick Change Gearbox
Coolant Tank Capacity
10 gal.
Swing Over Cross Slide (In.)
13-3/16
Number of Threads (mm)
40
Distance Between Centers (In.)
80
Longitudinal Feed Rates
0.002 to 0.032
Min. Spindle Speed
10 RPM
Min. Threads per Inch
2
Number of Metric Threads
40
Max. Metric Thread
14 mm (Module), 56 mm (D.P)
Application
Metal Turning
Max. Spindle Speed
1,000 RPM
Spindle Bore
4 1/2 in
Number of Inch Threads
44
Max. Cross Feed
0.0094 in
Swing Over Bed
22 in
Min. Cross Feed
0.0010 in
Spindle Nose Type
D1-11 Camlock
Min. Metric Thread
0.5 mm (Module), 4 mm (D.P)
Max. Threads per Inch
56
Swing In Gap
31 in
Swing Over Cross Slide
13 3/16 in
Metric Thread - Minimum
0.5 mm, 4 mm
Includes Collet Closer
No Collet Closer
Includes Taper Attachment
No Taper Attachment
Threads per Inch - Minimum
2
Spindle Nose Taper
D1-11 Camlock
Spindle Speed - Minimum
10 RPM
Swing Over Gap
14 1/2 in
Cross Feed - Maximum
0.0094 in/rev
Metric Thread - Maximum
14 mm, 56 mm
Threads per Inch - Maximum
56
Spindle Speed - Maximum
1,000 RPM
Series
22-B
Lathe Head Drive
Gear Drive
Cross Feed - Minimum
0.001 in/rev

Description

Lathe, Distance Between Centers 80 in, Voltage 220V AC, Horsepower 15 hp, Min. Spindle Speed 10 RPM, Application Metal Turning, Overall Height 50 in, Overall Length 137 in, Overall Width 40 1/2 in, Max. Spindle Speed 1,000 RPM, Tailstock Taper MT5, Spindle Nose Type D1-11 Camlock
