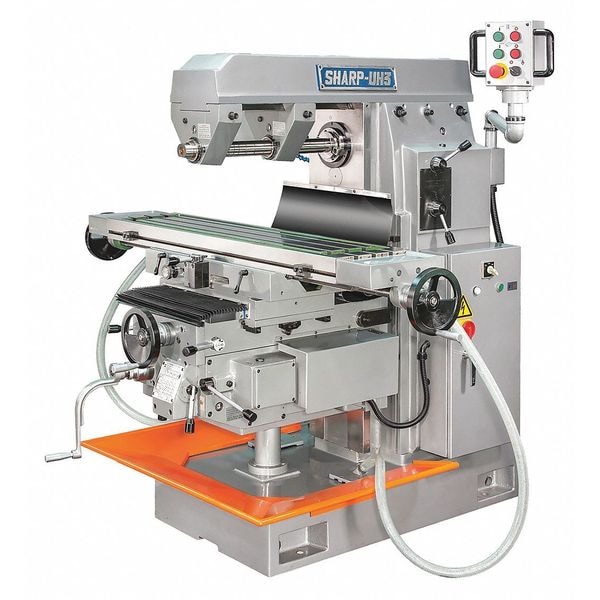

Sharp Mill Drill Machine, Manual, 3ph, 220V UH-3 - main

Mill Drill Machine, Manual, 3ph, 220V

  • Mfr # UH-3

  • Zoro # G5091928

product price: $70,066.99
/ea
Item requires special delivery charges. A $600.00 per item surcharge will be applied.

Key Features

Swing
10 in
Voltage
220/440V
RPM
70 to 4000
Drilling Capacity Steel
3/4 in
Spindle Speed
35 to 1382 rpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UH-3
Zoro #
G5091928
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
Not Included
Column Dia.
20 in
Table Surface Height
37 in
Overall Width
117 in
Overall Depth
69 in
Overall Height
67 1/4 in
T-Slot Width
5/8 in
Column Diameter
20 in
Table Work Surface - Width
51 1/8 in
Table Work Surface - Depth
11 3/4 in

Details

Swing
10 in
Voltage
220/440V
RPM
70 to 4000
Item
Mill Drill Machine
Drilling Capacity Steel
3/4 in
Spindle Speed
35 to 1382 rpm
Face Milling Capacity
4 in
Lathe Capacity
10 in to 20 in
Motor HP
7-1/2
Phase
Three
Longitudinal Travel
37 5/16 in
Cross Travel
14 13/16 in
Amps
26.0/13.0
End Milling Capacity
3/4 in
Spindle to Table
0" a 18 1/2"
Includes
(2) Arbor Supports, 1 1/4 in Diameter Horizontal Arbor, Chip Pan, Coolant System, Electro Magnetic Spindle Brake, Pressurize Auto Lube System, Tool Kit, Wired Dual 220 V or 440 V
Spindle
NT50
Spindle Travel
18-1/2"
Table Work Surface
11-51/64 in x 51-19/64 in
Head
Gear Drive
T-Slots
5/8"
Corded/Cordless
Corded
Features
(3) Axis Simultaneous Power Feed with Rapid Traverse, +/-45 Degrees Swivel Universal Table, 7-1/2 HP NST #50 Spindle, Climb Milling Compensator, Horizontal Spindle Has 12 Speeds, Massive Hardened and Ground Box Ways Throughout
Motor Type
Induction
Operation
Manual
Graduations
0.0010 in
Spindle Taper
NT50
Hz
60
Number of T-Slots
3
Power Source
Corded
Speed
70 to 4000 rpm
Motor Horsepower
7 1/2
Frequency
60 Hz
Maximum Ram Travel
20 in
Includes Digital Readout
No Digital Readout
Spindle Speed - Maximum
1,382 RPM
Spindle Speed - Minimum
35 RPM
Spindle to Table Distance
18 1/2 in
Horsepower
7 1/2 hp
Maximum Longitudinal Travel
37 3/8 in
Maximum Knee Travel
18 1/2 in
T-Slot Pitch
2 3/4 in
Motor Speed - Maximum
1,382 RPM
Maximum Spindle Travel
18 1/2 in
Maximum Cross Travel
14 13/16 in
Current
24 A, 48 A

Description

Mill Drill Machine, 7 1/2 hp, Phase Three, Voltage 220/440V, Longitudinal Travel 37 5/16 in, Cross Travel 14 13/16 in
