  11. Mill Drill Machine, Manual, 3ph, 220V

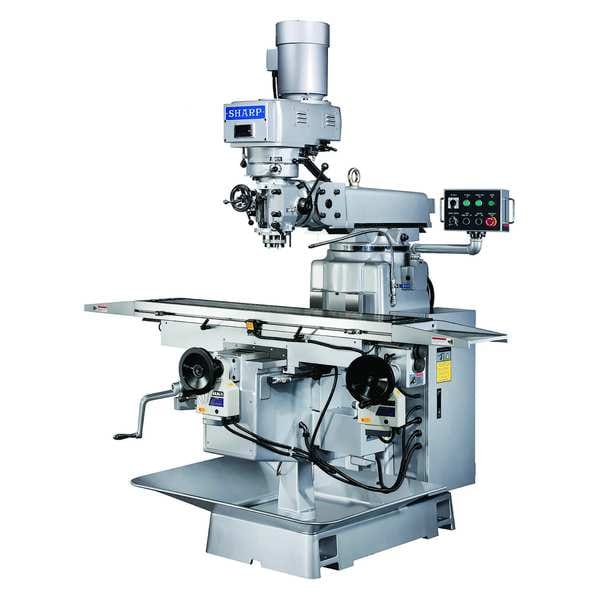

Sharp Mill Drill Machine, Manual, 3ph, 220V V-1 - main

Mill Drill Machine, Manual, 3ph, 220V

  • Mfr # V-1

  • Zoro # G5091900

product price: $55,352.99
/ea
Item requires special delivery charges. A $600.00 per item surcharge will be applied.

Key Features

Swing
10 in
Voltage
220/440V
RPM
70 to 4000
Drilling Capacity Steel
3/4 in
Spindle Speed
70 to 4000 rpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V-1
Zoro #
G5091900
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
Not Included
Quill Dia.
4 1/4 in
Table Surface Height
37 in
Column Dia.
20 in
Overall Depth
75 in
Overall Height
100 in
Overall Width
83 in
T-Slot Width
5/8 in
Table Work Surface - Depth
12 in
Column Diameter
20 in
Quill Diameter
4 1/8 in
Table Work Surface - Width
58 in

Details

Swing
10 in
Voltage
220/440V
RPM
70 to 4000
Item
Vertical Milling Machine
Drilling Capacity Steel
3/4 in
Spindle Speed
70 to 4000 rpm
Face Milling Capacity
4 in
Lathe Capacity
10 in to 20 in
Motor HP
5
Phase
Single/Three
Longitudinal Travel
40 in
Cross Travel
16 in
Amps
25.0/12.0
End Milling Capacity
3/4 in
Corded/Cordless
Corded
Head
Gear Drive
T-Slots
5/8"
Table Work Surface
12 in x 58 in
Features
Adjustable Double Nut Design for Backlash Elimination, Extra Wide Saddle for Full Support of Table, Full Ribbed High Tensile Strength Casting to Dampen Vibration, Hardened and Ground Box Ways Throughout, Motorized Rapid Knee Positioning, Power Feed Table and Saddle, Unique Knuckle Design Utilizing T-Bolts for Added Rigidity
Spindle Taper
NT40
Hz
60
Motor Type
Induction
Includes
Auto Lube System, Coolant System, Front and Rear Rubber Way Cover, Halogen Worklight, Motorized Rapid Knee Positioning, Power Feed Table and Saddle, Rubber Way Cover at back of Saddle
Spindle Travel
16 in
Graduations
0.0010 in
Operation
Manual
Spindle
NT40
Spindle to Table
2 in to 18 in
Number of T-Slots
3
Motor Horsepower
5
Frequency
60 Hz
Speed
70 to 4000 rpm
Power Source
Corded
T-Slot Pitch
2 1/2 in
Head Swivel - Left
90 Degrees
Maximum Knee Travel
16 in
Maximum Spindle Travel
16 in
Maximum Longitudinal Travel
40 in
Spindle Speed - Minimum
70 RPM
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed
Maximum Cross Travel
16 in
Spindle Speed - Maximum
4,000 RPM
Head Tilt - Forward
45 Degrees
Current
4 A, 8 A
Includes Digital Readout
Digital Readout Included
Head Tilt - Backward
45 Degrees
Head Swivel - Right
90 Degrees
Motor Speed - Maximum
4,000 RPM
Horsepower
5 hp
Maximum Ram Travel
17 13/16 in
Spindle to Table Distance
18 in

Description

Vertical Milling Machine, 5 hp, Phase Single/Three, Voltage 220/440V, Longitudinal Travel 40 in, Cross Travel 16 in
