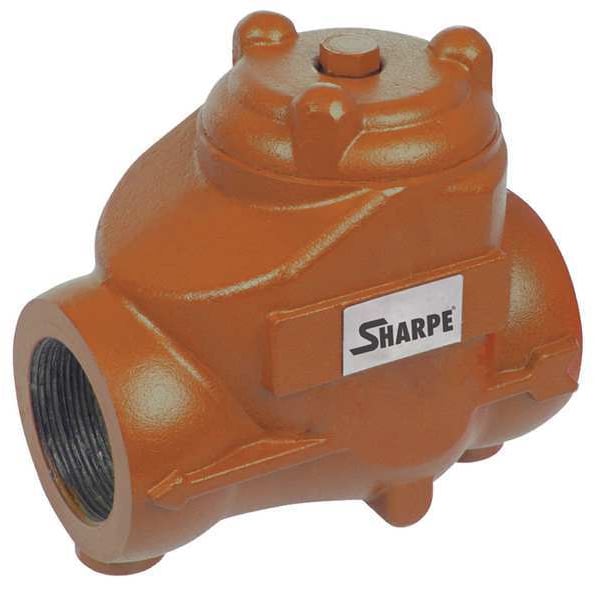

3" FNPT Carbon Steel Oil Patch Swing Check Valve

  • Mfr # 4353013740
  • Zoro # G5032596
product price:
$
367.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3"
Connection Type
FNPT
Body Material
Carbon Steel
Max. Pressure
2160 psi
Seat Material
Rubber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4353013740
Zoro #
G5032596
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
3"
Pipe or Tube Size - Check Valves
3 in
Size
3"
Length
8 3/4 in
Overall Length
8.75 in
Pipe or Tube Size
3 in
Nominal Valve Size
3 in
Connection Size - Side 1
3 in
Connection Size - Side 2
3 in
Wire Rope Length
8.75 in

Details

Connection Type
FNPT
Body Material
Carbon Steel
Max. Pressure
2160 psi
Seat Material
Rubber
Compliance
NACE MR0175-2009
Min. Temp. - Valves
0 Degrees F
Seal Material - Check Valves
Viton
Cracking Pressure - Check Valves
0 psi
Sub-Category
Steel
Flow Design
Single
Mechanism and Body Design
Inline Swing
Max. Temp.
0 Degrees to 280 Degrees F
Max. Temp. - Valves
280 Degrees F
Mounting Orientation - Check Valves
Horizontal
Full Flow - Valves
Yes
Max. Steam Pressure - Valves
Not Rated
Item
Oil Patch Swing Check Valve
Item - Check Valves
Check Valve
Application - Valves
General Purpose
Flow - Valves
225 gpm
Cracking Pressure
0 psi
Connection Type - Check Valves
FNPT x FNPT
Seat Material - Check Valves
Viton
Standards
NACE MR0175
Material of Construction
Carbon Steel
Max. Water Pressure - Valves
3000 psi @ 225 Degrees F
Seal Material
FKM
Body Material - Valves
Carbon Steel
Mounting Position
Horizontal
Flow
225 gpm
Mounting Orientation
Horizontal
Connection Type - Side 1
NPSM
Operating Temperature - Minimum
0 Degrees F
Check Mechanism
Swing
For Media
Oil
Maximum Pressure - Operating
3,000 psi
Check Mechanism Material
316 Stainless Steel
Connection Type - Side 2
NPSM
Connection Gender - Side 1
Female
Valve Body Style
Inline
Vacuum Service Rating
Not Rated
Silent Check
Standard
Includes Counterweight
No Counterweight
Valve Ways
2-Way
Connection Gender - Side 2
Female
Maximum Pressure - Steam
Not Rated
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
280 Degrees F
Valve Series
OP20

Description

SHARPE 4353013740 is a 3 in oil patch swing check valve with an inline body design for one-way flow applications in oil service and applications compatible with the listed media, materials, pressure, and temperature specifications. It uses a swing check mechanism that opens with forward flow and closes to help limit reverse flow. The carbon steel body, 316 stainless steel check mechanism, and full-flow design are specified for use within the listed pressure, temperature, and media ratings.

Key Features:

  • 3 in nominal valve size with FNPT x FNPT female connections
  • Inline swing check design with horizontal mounting orientation
  • Carbon steel body with 316 stainless steel check mechanism
  • Media: Oil
  • Cracking pressure: 0 psi
  • Flow rate: 225 gpm
  • Full-flow design
  • Seal material: FKM; seat material: verify supplier specification before publication
  • Operating temperature range: 0 degrees F to 280 degrees F
  • Maximum operating pressure: verify supplier specification before publication
  • Maximum water pressure: 3000 psi at 225 degrees F
  • Overall length: 8.75 in
  • Standards: NACE MR0175, NACE MR0175-2009
  • Valve series: OP20
