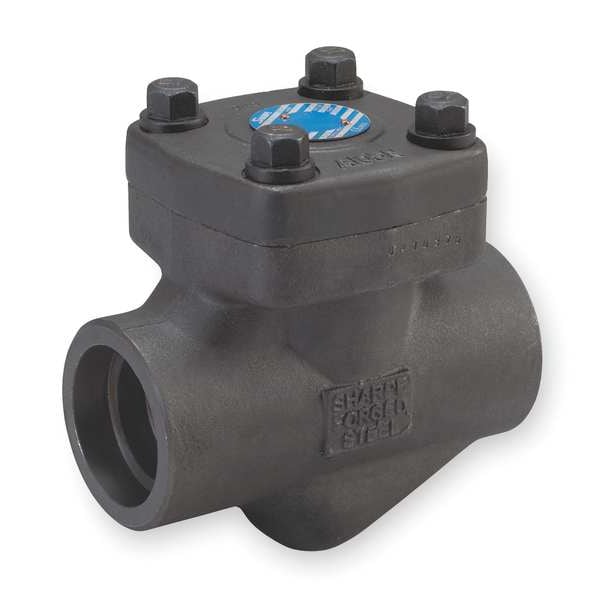

2" Socket Forged Carbon Steel Piston Check Valve

  • Mfr # 4371001420
  • Zoro # G2482103
product price:
$
265.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
Socket x Socket
Connection
Socket
Body Material
Carbon Steel
Item - Check Valves
Check Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4371001420
Zoro #
G2482103
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
2"
Pipe or Tube Size - Check Valves
2 in
Length
6 25/32 in
Size
2"
Overall Length
6.77 in
Pipe or Tube Size
2 in
Height - Cap to Inlet Center
3 15/16 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Wire Rope Length
6.77 in

Details

Connection Type
Socket x Socket
Connection
Socket
Body Material
Carbon Steel
Item - Check Valves
Check Valve
Cap to Inlet Center
3 29/32 in
Cracking Pressure
43 psi
Max. Pressure
Water: 2000 psi @ 100 Degrees F, Steam: 800 psi WSP
Application - Valves
General Purpose
Seal Material
304 Stainless Steel, Graphite
Full Flow - Valves
No
Flow - Valves
60.0 gpm
Seal Material - Check Valves
304 Stainless Steel, Graphite
Mounting Orientation - Check Valves
Horizontal
Compliance
NACE MR-01-75
Max. Water Pressure - Valves
2000 psi @ 100 Degrees F
Mounting Position
Horizontal
Spring Material
316 Stainless Steel
Max. Temp.
0 Degrees to 800 Degrees F
Material of Construction
Forged Carbon Steel
Sub-Category
Steel
Item
Piston Check Valve
Standards
API 598, API 602 (9th Edition) & ASME B16.34, ASME B16.11
Seat Material - Check Valves
Stellite
Max. Steam Pressure - Valves
800 psi WSP
Min. Temp. - Valves
0 Degrees F
Connection Type - Check Valves
Socket x Socket
Mechanism and Body Design
Inline Piston
Flow Design
Single
Spring Material - Check Valves
316 Stainless Steel
Body Material - Valves
Carbon Steel
Cracking Pressure - Check Valves
43.0 psi
Max. Temp. - Valves
800 Degrees F
Flow
60 gpm
Seat Material
Stellite
Mounting Orientation
Horizontal
Seal
FPM
Valve Body Style
Inline
Valve Ways
2-Way
Operating Temperature - Minimum
-20 Degrees F
Connection Type - Side 1
Socket
Vacuum Service Rating
Not Rated
Connection Type - Side 2
Socket
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
25
For Media
Steam, Water
Check Mechanism Material
316 Stainless Steel
3-A Standard Compliance
Not Rated
Maximum Pressure - Operating
1,975 psi
Connection Gender - Side 2
Female
Operating Temperature - Maximum
100 Degrees F
Silent Check
Standard
Check Mechanism
Piston
Includes Counterweight
No Counterweight
Valve Series
2483

Description

The SHARPE VALVES 4371001420 is a 2 in inline piston check valve with socket x socket female connections and a forged carbon steel body. It is rated for steam and water service, with a piston check mechanism for one-way flow applications and closure upon flow stoppage or reversal. This valve is configured for horizontal mounting and features a single-flow design.

Key Features:

  • 2 in nominal valve size with 2 in socket x socket female end connections.
  • Forged carbon steel body with inline body style and inline piston mechanism design.
  • Piston check mechanism with 316 stainless steel mechanism and 316 stainless steel spring.
  • Cracking pressure: 43 psi.
  • Flow rating: 60 gpm with Cv of 25.
  • Pressure ratings: 2000 psi at 100 Degrees F for water; 800 psi WSP for steam; 1,975 psi maximum operating pressure.
  • Temperature ratings: 0 to 800 Degrees F; minimum valve temperature: 0 Degrees F.
  • Seal materials: 304 stainless steel and graphite; seat material: Stellite.
  • Overall length: 6.77 in; cap to inlet center: 3 29/32 in; height from cap to inlet center: 3 15/16 in.
  • Standards: meets multiple API, ASME, and NACE standards.
