Shop All Ball Valves
Sharpe Valves

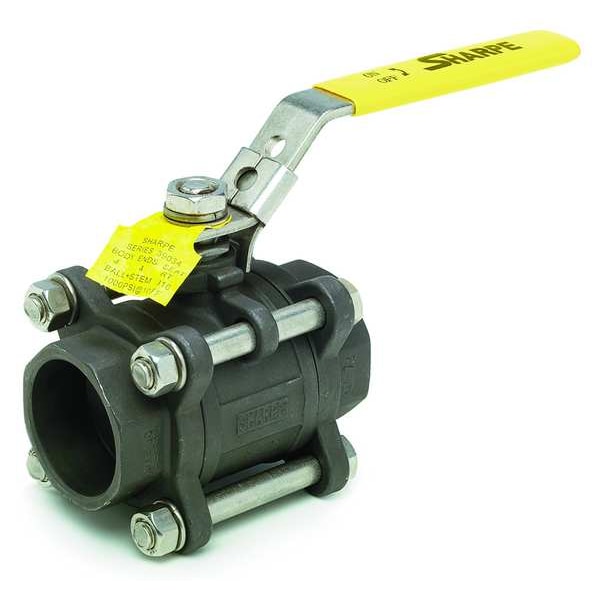

3/4" Socket Carbon Steel Ball Valve Inline

product price: $47.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Carbon Steel
  • Body Style Inline
  • Ball Valve Product Group Manual
  • Handle Type Locking Lever
  • Seat Material RPTFE
See all product information

Product Information

Dimensions

Pipe Size 3/4"
Overall Length 2.87 in
Nominal Valve Size 3/4 in
Connection Size - Side 2 3/4 in
Connection Size - Side 1 3/4 in
Handle Height 2.5 in
Handle Length 5.07 in

Details

Body Material Carbon Steel
Body Style Inline
Item Ball Valve
Ball Valve Product Group Manual
Handle Type Locking Lever
Seat Material RPTFE
Connection Type Socket x Socket
Temp. Range 0 Degrees to 400 Degrees F
Stem Material 316 Stainless Steel
Ball Valve Basic Body Material Carbon Steel
Ball Material 316 stainless steel
Valve Structure 3-Piece
Standards ASTM A216 WCB
Max. Pressure 1000 psi CWP
Port Full
Body Seal Material PTFE
Stem Type Self-Adjusting
Handle Material 300 Stainless Steel with PVC Grip
Seal Material PTFE
Type Three Piece
Connection Socket
Material of Construction Carbon Steel
Sub-Category Steel Ball Valves
Connection Type - Side 2 Socket
Vacuum Service Rating 29 in Hg
Ball Port Style Full Port
Maximum Pressure - Operating 1,000 psi
Valve Construction Three-Piece
Connection Gender - Side 1 Female
Color - Valve Handle Yellow
Valve Ways 2-Way
For Media Air, Non-Potable Water
Operating Temperature - Maximum 450 Degrees F
3-A Standard Compliance Not Rated
Coefficient of Volume (Cv) 50
Connection Type - Side 1 Socket
Operating Temperature - Minimum 0 Degrees F
Valve Body Style Straight
Connection Gender - Side 2 Female
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Locking

Description

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Air, Non-Potable Water, Valve Construction Three-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port
