  11. 3/8" FNPT Stainless Steel Pneumatic Ball Valve Inline
Shop All Pneumatic Flow Control Valves
Sharpe Valves

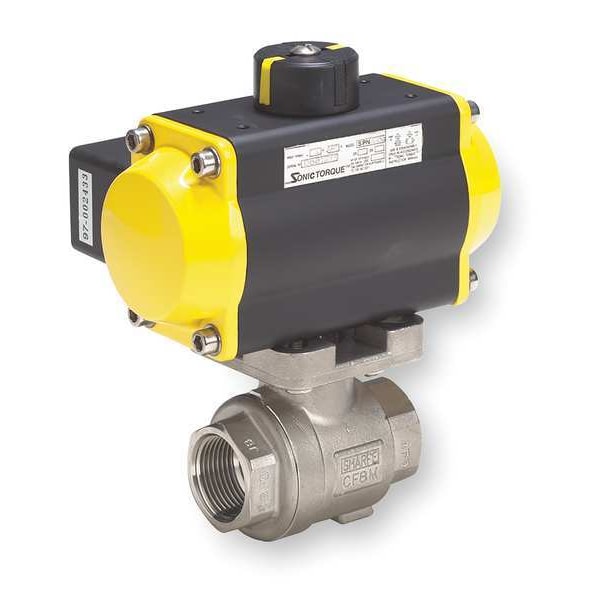

3/8" FNPT Stainless Steel Pneumatic Ball Valve Inline

product price: $526.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Stainless Steel
  • Connection Type FNPT
  • Pipe Size 3/8 in
  • Valve Structure 2-Piece
  • Seat Material PTFE
See all product information

Product Information

Dimensions

Pipe Size 3/8 in
Nominal Valve Size 1/4 in
Connection Size - Side 1 1/4 in
Connection Size - Side 2 1/4 in

Details

Item Pneumatically Actuated Two-Way Ball Valve
Body Material Stainless Steel
Connection Type FNPT
Valve Structure 2-Piece
Seat Material PTFE
Body Seal Material TFE
Temp. Range 0 Degrees to 300 Degrees F
Max. Pressure 100 psi Steam, 1500 psi WOG
Required Pressure 40 psi
Stem Material 316 Stainless Steel
Ball Valve Basic Body Material Stainless Steel
Port Full
Mount Direct
Max. Inlet Pressure 145 psi
Body Style Inline
Ball Material Stainless Steel
Operation Double Acting
Standards MSS SP-110
Ball Valve Product Group Actuated
Seal Material PTFE
NEMA Enclosure Rating 4X
3-A Standard Compliance Not Rated
Operating Temperature - Minimum 0 Degrees F
Valve Deactivated State Normally Closed (NC), Normally Open (NO)
Vacuum Service Rating 29 in Hg
Stem Type Adjustable, Blowout Resistant
Connection Gender - Side 2 Female
Maximum Pressure - Steam 100 psi
Maximum Pressure - Operating 1,500 psi
Maximum Operating Pressure Differential 145 psi
Connection Gender - Side 1 Female
Operating Temperature - Maximum 300 Degrees F
Valve Ways 2-Way
Valve Construction Two-Piece
Connection Type - Side 2 NPT
Connection Type - Side 1 NPT
Coefficient of Volume (Cv) 8
Ball Port Style Full Port
Actuator Air Pressure - Maximum 145 psi
Special Features Actuator Compatible
Actuator Air Pressure - Minimum 40 psi
Vented Ball Valve Vented
Fail Safe Position Fail Closed
IP Rating Not Rated
Included Mounting ISO 5211 Actuator Mounting Pad
Valve Body Style Straight
Maximum Pressure - Combustible Gas Not Rated
Actuator Operation Air to Air

Description

Pneumatically Actuated Two-Way Ball Valve, Nominal Valve Size 1/4 in, Actuator Operation Air to Air, Ball Material Stainless Steel, Valve Deactivated State Normally Closed (NC), Normally Open (NO), Fail Safe Position Fail Closed, Included Pilot Solenoid Not Applicable, Valve Body Style Straight, Body Material Stainless Steel, Average Surface Roughness (Ra) Not Applicable, Ball Port Style Full Port, Maximum Pressure - Operating 1,500 psi, Maximum Pressure - Steam 100 psi
