  6. 2" X 1-13/16" Non-Marking Polyolefin Log Swivel Caster, No Brake, Loads Up To 300 lb

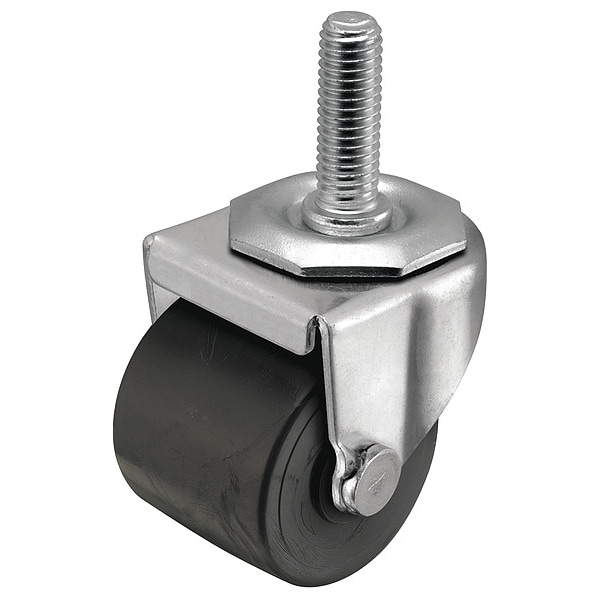

Shepherd Hardware 2" X 1-13/16" Non-Marking Polyolefin Log Swivel Caster, No Brake, Loads Up To 300 lb C0020748ZN-POL01(KK) - main

2" X 1-13/16" Non-Marking Polyolefin Log Swivel Caster, No Brake, Loads Up To 300 lb

  • Mfr # C0020748ZN-POL01(KK)

  • Zoro # G7805107

product price:  $12.79
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1-13/16 in
Mounting Height
2-3/4 in
Load Rating
300 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C0020748ZN-POL01(KK)
Zoro #
G7805107
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
1-13/16 in
Mounting Height
2-3/4 in
Stem Length
1-1/2 in
Thread Size
13UNC
Stem Dia.
1/2 in
Overall Height
4 1/4 in
Caster Stem Size
1/2"-13 x 1 1/2 in
Wheel Dia.
2 in

Details

Item
Low Profile Threaded Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
300 lb
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Polyolefin - Log
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain Bore (None)
Number of Wheels
1
Standards
RoHS Compliant, NSF Approved
Wheel Core Material
Polyolefin
Frame Finish
Zinc Plated
Caster Product Group
Swivel Caster
Wheel/Tread Color
Black
Caster Mounting Type
Stem
Swivel Lock Type
No Lock Included
Core Color
Black
Operating Temperature Range
-20°F to 180°F
Caster Sub-Type
Swivel
Series
00
Features
Sleek, Low Profile Design, Chemical Resistance, Floor Protection, High-Impact Strength
System of Measurement
Inch
Swivel Raceway Type
Double Ball
Includes Spanner Bushing
No
Wheel Type
Tread on Core
Load Capacity - Maximum
300 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Steel
Number of Mounting Holes
0
Caster Features
Low-Profile
Wheel Core Type
Solid
Wheel Hardness Rating
70 Shore D
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Stem Caster, Swivel Caster, 300 lb Load Rating, 300 to 999 lb, 2 in Wheel Dia., 1 13/16 in Wheel Width, Polypropylene Wheel/Tread Material, 2 3/4 in Mounting Height, Plain, 1/2 In.-13 x 1 1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
