  6. 2" X 1-13/16" Non-Marking Polyolefin Log Swivel Caster, Side Brake, Loads Up To 300 lb

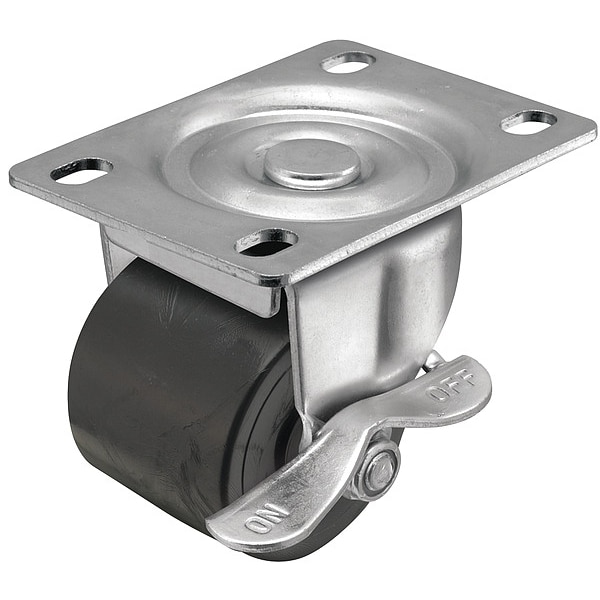

Shepherd Hardware 2" X 1-13/16" Non-Marking Polyolefin Log Swivel Caster, Side Brake, Loads Up To 300 lb C0020120ZN-POL01(KK)B - main

2" X 1-13/16" Non-Marking Polyolefin Log Swivel Caster, Side Brake, Loads Up To 300 lb

  • Mfr # C0020120ZN-POL01(KK)B

  • Zoro # G7812545

product price:  $11.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C0020120ZN-POL01(KK)B
Zoro #
G7812545
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
2 in
Wheel Width
1 7/8 in
Mounting Height
2-13/16 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Plate Thickness
5/32 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
2 15/16 in
Hub Length
1 7/8 in
For Axle Dia.
9/32 in
Inside Slot Spacing - Length
2.75 in
Outside Slot Spacing - Length
3 in
Mounting Plate Width
2 5/8 in
Mounting Plate Length
3 3/4 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Caster Plate Hole Pattern
C
Operating Temperature Range
-20 to 180 Degrees F
Wheel Core Type
Solid
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
NSF Listed
No
Standards
RoHS Compliant, NSF Listed
Frame Color
Silver
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Features
Industry Leading Selection and Overall Value, Sleek, Low Profile Design, Up To 300 lb Capacity per Caster, Dual Ball Bearing Raceways for Smooth and Dependable Swivel
Caster Stem Type
Top Plate
Includes Thread Guards
No
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Swivel Raceway Type
Double Ball
Frame Finish
Zinc Plated
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
ESD Conductive
No
Series
00 Series
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Load Capacity - Maximum
300 lb
Mounting Hole Type
Slot
Brake Location
Right Side
Caster Features
Low Profile
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 1 7/8 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
