  6. 2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, Side Brake, Loads Up To 225 lb

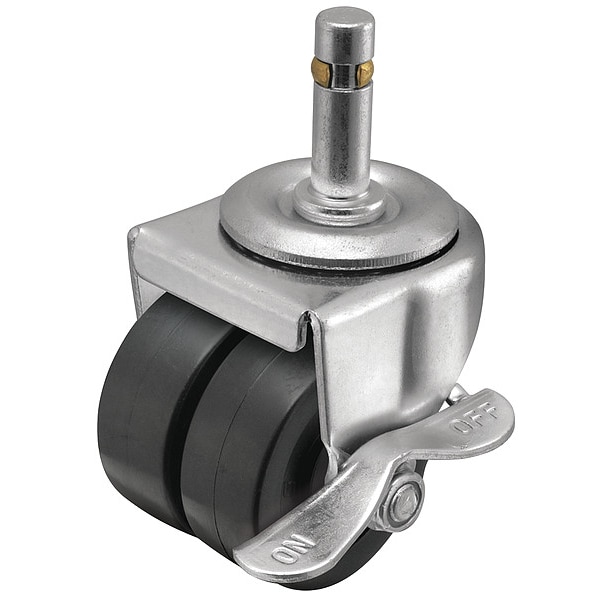

Shepherd Hardware 2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, Side Brake, Loads Up To 225 lb C0020273ZN-POS01(KK)B - main

2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, Side Brake, Loads Up To 225 lb

  • Mfr # C0020273ZN-POS01(KK)B

  • Zoro # G7805764

product price:  $12.29
/ea

Key Features

Caster Stem Type
Grip Band
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
2-3/4 in
Load Rating
225 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C0020273ZN-POS01(KK)B
Zoro #
G7805764
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
13/16 in
Mounting Height
2-3/4 in
Stem Length
1-3/8 in
Overall Height
4 1/8 in
Caster Stem Size
7/16 in x 1-3/8 in
Wheel Dia.
2 in
Stem Dia.
7/16 in

Details

Item
Low Profile Grip Ring Stem W/ Brake
Caster Stem Type
Grip Band
Tread Shape
Standard
Load Rating
225 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Polyolefin - Dual
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
Non-Marking
Yes
Caster Brake Type
Side Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain Bore (None)
Number of Wheels
2
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Wheel Core Material
Polyolefin
Caster Sub-Type
Swivel
Swivel Raceway Type
Double Ball
Caster Mounting Type
Stem
Operating Temperature Range
-20°F to 180°F
Core Color
Black
Frame Finish
Zinc Plated
Series
00
Standards
RoHS Compliant
System of Measurement
Inch
Caster Product Group
Swivel Caster with Brake
Features
Sleek, Low Profile Design, Chemical Resistance, Floor Protection, High-Impact Strength
Includes Spanner Bushing
No
Wheel Type
Tread on Core
Operating Temperature - Maximum
180 Degrees F
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Steel
Load Capacity - Maximum
225 lb
Number of Mounting Holes
0
Wheel Hardness Rating
70 Shore D
Caster Features
Low-Profile
Operating Temperature - Minimum
-20 Degrees F

Description

Stem Caster, Swivel Caster with Brake, 225 lb Load Rating, 0 to 299 lb, 2 in Wheel Dia., 13/16 in Wheel Width, Polypropylene Wheel/Tread Material, 2 3/4 in Mounting Height, Plain, 7/16 in x 1-3/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 2 Number of Wheels
