  11. 2" X 13/16" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 90 lb

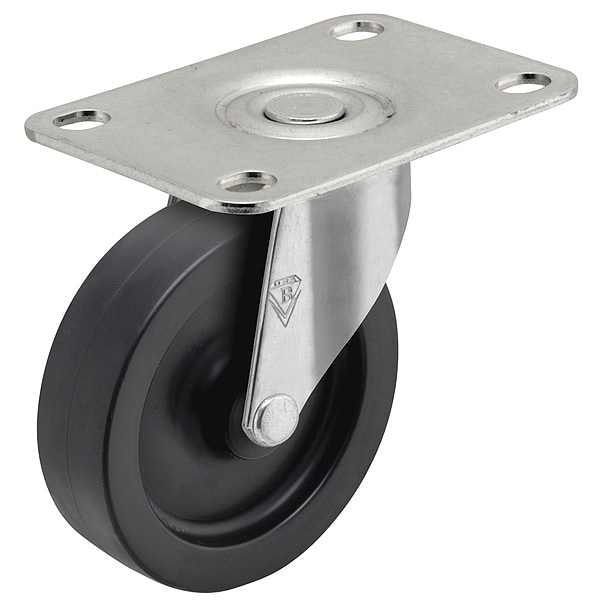

Shepherd Hardware 2" X 13/16" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 90 lb PRE20108ZN-3E - main

2" X 13/16" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 90 lb

  • Mfr # PRE20108ZN-3E

  • Zoro # G7811118

product price: $4.69
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Wheel Dia.
2 in
Wheel Width
7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PRE20108ZN-3E
Zoro #
G7811118
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
2 in
Wheel Width
7/8 in
Mounting Height
2-5/8 in
Mounting Plate Size
1 3/4 in x 2 5/8 in
Mounting Plate Thickness
3/32 in
Mounting Bolt Dia.
9/32 in
For Axle Dia.
1/4 in
Hub Length
29/32 in
Swivel Radius
1 15/16 in
Mounting Plate Length
2 5/8 in
Bolt Hole Spacing - Width
0.969 in
Mounting Plate Width
1 3/4 in
Bolt Hole Spacing - Length
2.125 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Load Rating
90 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
31/32 in X 2-1/8 in
Inside Bolt Hole Spacing
31/32 in X 2-1/8 in
Caster Plate Hole Pattern
D
Caster Stem Type
Top Plate
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Series
Regent
Frame Color
Silver
ESD Conductive
No
Load Rating Range
0 to 299 lb
Frame Finish
Zinc Plated
Features
Corrosion Resistant, Chemical Resistant
Wheel Core Material
Polyolefin
Standards
RoHS Compliant, NSF Listed
Application
Store Fixtures, Carts, Institutional Equipment, Food Serive Equipment, Furniuture, Janitorial , Office Equipment, Racks And Storage Equipment, Medical Equipment
NSF Listed
No
Operating Temperature Range
-20 to 180 Degrees F
Swivel Lock Type
No Lock Included
Wheel Core Type
Solid
Swivel Raceway Type
Double Ball
Swivel Bearing Seal Type
Open
Swivel Construction
Swivel
Load Capacity - Maximum
100 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole

Description

Swivel, Plate Caster, Load Rating 100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 7/8 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
