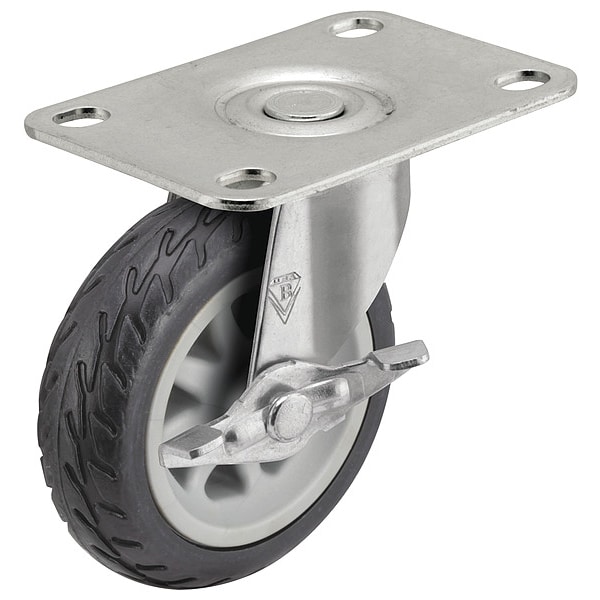

Shepherd Hardware 3" X 13/16" Rubber No-Matic Swivel Caster, Side Brake, Loads Up To 110 lb PRE30120ZN-NOMB - main

3" X 13/16" Rubber No-Matic Swivel Caster, Side Brake, Loads Up To 110 lb

  • Mfr # PRE30120ZN-NOMB

  • Zoro # G7812378

product price:  $16.29
/ea

Key Features

Caster Plate Hole Pattern
C
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Swivel Lock Type
No Lock Included
For Axle Dia.
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRE30120ZN-NOMB
Zoro #
G7812378
UPC #
-
Country of Origin
United States

Dimensions

For Axle Dia.
1/4 in
Mounting Height
3-1/2 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Bolt Dia.
5/16 in
Wheel Width
7/8 in
Hub Length
31/32 in
Swivel Radius
2 1/2 in
Wheel Dia.
3 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 5/8 in
Mounting Plate Thickness
3/32 in
Outside Slot Spacing - Length
3 in
Inside Slot Spacing - Length
2.75 in
Mounting Plate Length
3 3/4 in

Details

Item
Swivel Caster with Brake
Caster Plate Hole Pattern
C
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Swivel Lock Type
No Lock Included
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Caster Frame Material
Steel
Load Rating
110 lb
Caster Brake Type
Side Brake
Swivel Raceway Type
Double Ball
ESD Conductive
No
Caster Stem Type
Top Plate
Features
Corrosion Resistant, Chemical Resistant
Non-Marking
No
Frame Color
Silver
Wheel Core Type
Spoke
NSF Listed
No
Wheel/Tread Color
Black/Grey
Standards
RoHS Compliant, NSF Listed
Wheel/Tread Hardness Rating
Soft
Caster Mounting Type
Plate
Series
Regent
Core Color
Grey
Includes Thread Guards
No
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Tread Shape
Standard
Wheel Core Material
Polypropylene
Load Rating Range
0 to 299 lb
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Wheel/Tread Material
Polypropylene
Number of Wheels
1
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Wheel Hardness Rating
70 Shore A
Load Capacity - Maximum
110 lb
Mounting Plate Shape
Rectangle
Brake Location
Left Side
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 150 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 7/8 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polypropylene, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
