Shop SHEPHERD HARDWARE

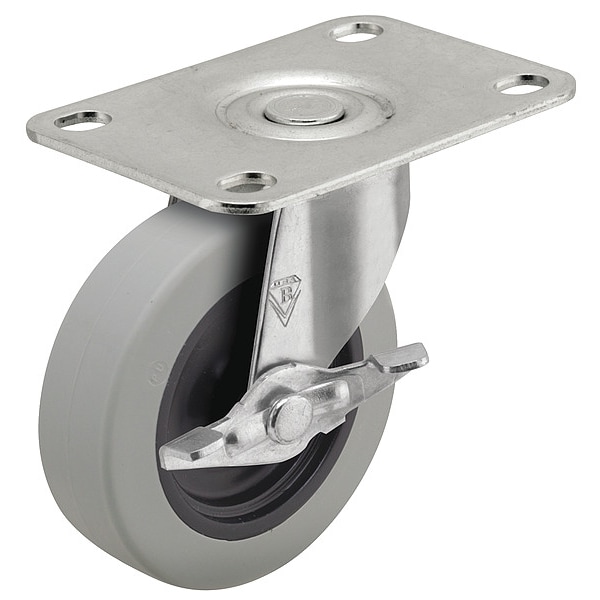

2" X 13/16" Non-Marking Polyurethane Swivel Caster, Side Brake, Loads Up To 90 lb

  • Mfr # PRE20108ZN-TPUB

  • Zoro # G7811705

product price:  $6.79
/ea

Key Features

For Axle Dia.
1/4 in
Outside Bolt Hole Spacing
31/32 in x 2 1/8 in
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Tread Shape
Standard
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRE20108ZN-TPUB
Zoro #
G7811705
UPC #
-
Country of Origin
United States

Dimensions

For Axle Dia.
1/4 in
Wheel Dia.
2 in
Swivel Radius
2 1/8 in
Mounting Bolt Dia.
9/32 in
Hub Length
29/32 in
Mounting Height
2 5/8 in
Mounting Plate Size
1 3/4 in x 2 5/8 in
Wheel Width
7/8 in
Mounting Plate Length
2 5/8 in
Bolt Hole Spacing - Width
0.969 in
Mounting Plate Thickness
3/32 in
Bolt Hole Spacing - Length
2.125 in
Mounting Plate Width
1 3/4 in

Details

Outside Bolt Hole Spacing
31/32 in x 2 1/8 in
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Tread Shape
Standard
Number of Wheels
1
Caster Frame Material
Steel
Core Color
Black
Caster Plate Hole Pattern
D
Wheel Core Type
Solid
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Wheel Core Material
Polypropylene
Includes Thread Guards
No
Item
Plate Caster
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Rubber, Steel, Tile, Wood
Inside Bolt Hole Spacing
31/32 in x 2 1/8 in
Caster Mounting Type
Plate
Non-Marking
Yes
Frame Color
Silver
Number of Mounting Holes
4
Series
Regent
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Load Rating Range
0 to 299 lb
Features
Corrosion Resistant, Chemical Resistant
ESD Conductive
No
Standards
RoHS Compliant, NSF Listed
Wheel/Tread Color
Black
Caster Brake Type
Side Brake
NSF Listed
No
Operating Temperature Range
-40 to 180 Degrees F
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Plain
Load Rating
100 lb
Swivel Bearing Seal Type
Open
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Swivel
Load Capacity - Maximum
100 lb
Wheel Hardness Rating
40 Shore D
Brake Location
Left Side
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole

Description

Swivel, Plate Caster, Load Rating 100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 7/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
