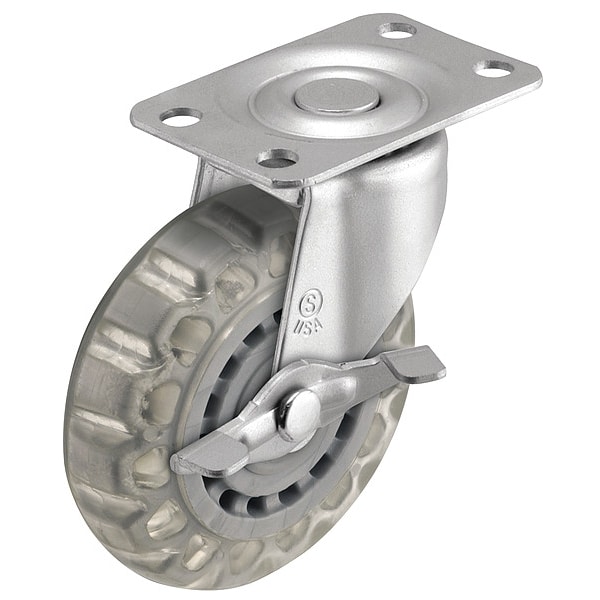

Shepherd Hardware 2" X 13/16" Non-Marking Pvc Swivel Caster, Side Brake, Loads Up To 90 lb PRE20108ZN-VPR01(CG)B - main

2" X 13/16" Non-Marking Pvc Swivel Caster, Side Brake, Loads Up To 90 lb

  • Mfr # PRE20108ZN-VPR01(CG)B

  • Zoro # G7812615

product price:  $8.69
/ea

Key Features

Wheel Core Type
Solid
Wheel/Tread Material
Polyurethane
Mounting Plate Size
1 3/4 in x 2 5/8 in
Load Rating
90 lb
Core Color
Grey
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRE20108ZN-VPR01(CG)B
Zoro #
G7812615
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Size
1 3/4 in x 2 5/8 in
For Axle Dia.
1/4 in
Mounting Height
2-5/8 in
Hub Length
1 in
Wheel Dia.
2 in
Swivel Radius
2 1/8 in
Wheel Width
7/8 in
Mounting Bolt Dia.
9/32 in
Bolt Hole Spacing - Length
2.125 in
Bolt Hole Spacing - Width
0.969 in
Mounting Plate Thickness
3/32 in
Mounting Plate Length
2 5/8 in
Mounting Plate Width
1 3/4 in

Details

Wheel Core Type
Solid
Wheel/Tread Material
Polyurethane
Load Rating
90 lb
Core Color
Grey
Inside Bolt Hole Spacing
31/32 in X 2-1/8 in
Number of Mounting Holes
4
Frame Color
Silver
Frame Finish
Zinc Plated
Series
Regent
Outside Bolt Hole Spacing
31/32 in X 2-1/8 in
Wheel Bearing Type
Plain
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Rubber, Steel, Tile, Wood
Wheel/Tread Hardness Rating
Soft
Standards
RoHS Compliant, NSF Listed
Wheel/Tread Color
Clear/Grey
Caster Stem Type
Top Plate
Caster Plate Hole Pattern
D
Features
Corrosion Resistant, Chemical Resistant
Caster Sub-Type
Swivel
Item
Swivel Caster with Brake
Caster Brake Type
Side Brake
Tread Shape
Standard
Caster Mounting Type
Plate
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Load Rating Range
0 to 299 lb
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Caster Frame Material
Steel
ESD Conductive
No
Number of Wheels
1
Swivel Lock Type
No Lock Included
Non-Marking
Yes
NSF Listed
No
Wheel Core Material
Polypropylene
Swivel Bearing Seal Type
Open
Swivel Construction
Swivel
Load Capacity - Maximum
80 lb
Wheel Hardness Rating
90 Shore A
Mounting Hole Type
Hole
Brake Location
Left Side
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 80 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 7/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
