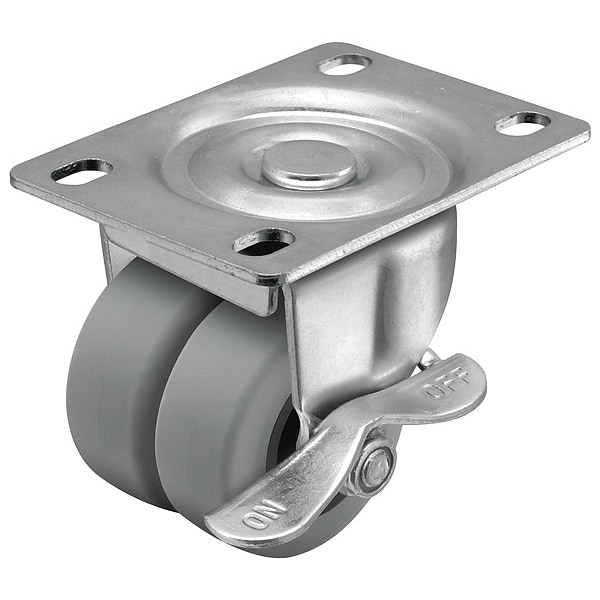

Shepherd Hardware 2" X 13/16" Non-Marking Rubber Thermoplastic Swivel Caster, Side Brake, Loads Up To 180 lb C0020120ZN-TPR01(GG)B - main

2" X 13/16" Non-Marking Rubber Thermoplastic Swivel Caster, Side Brake, Loads Up To 180 lb

  • Mfr # C0020120ZN-TPR01(GG)B

  • Zoro # G7812859

product price:  $15.55
/ea

Key Features

Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Core Color
Black
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
Caster Plate Hole Pattern
C
Wheel Core Type
Solid
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C0020120ZN-TPR01(GG)B
Zoro #
G7812859
UPC #
-
Country of Origin
United States

Dimensions

Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Bolt Dia.
5/16 in
Overall Wheel Width
1 3/4 in
Mounting Height
2-13/16 in
Wheel Dia.
2 in
Swivel Radius
2 15/16 in
Mounting Plate Width
2 5/8 in
For Axle Dia.
1/4 in
Inside Slot Spacing - Length
2.75 in
Mounting Plate Length
3 3/4 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
5/32 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in

Details

Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Core Color
Black
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
Item
Swivel Caster with Brake
Caster Plate Hole Pattern
C
Wheel Core Type
Solid
Series
00 Series
Standards
RoHS Compliant
ESD Conductive
No
Number of Mounting Holes
4
Tread Shape
Standard
Load Rating
180 lb
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
System of Measurement
Inch
Caster Mounting Type
Plate
Operating Temperature Range
-40 to 180 Degrees F
Features
Industry Leading Selection and Overall Value, Sleek, Low Profile Design, Up To 300 lb Capacity per Caster, Dual Ball Bearing Raceways for Smooth and Dependable Swivel
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Caster Stem Type
Top Plate
Caster Sub-Type
Swivel
Caster Frame Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Number of Wheels
2
Caster Brake Type
Side Brake
Wheel/Tread Material
Rubber
Wheel Bearing Type
Plain
Non-Marking
Yes
Frame Finish
Zinc Plated
Frame Color
Silver
Wheel/Tread Color
Grey/Black
Swivel Lock Type
No Lock Included
Swivel Construction
Swivel
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Bearing Seal Type
Open
NSF Listed
No
Load Capacity - Maximum
180 lb
Wheel Hardness Rating
40 Shore D
Brake Location
Right Side
Caster Features
Low Profile
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 180 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width Not Applicable, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Side Brake, Tread Shape Standard
