Shop SHEPHERD HARDWARE

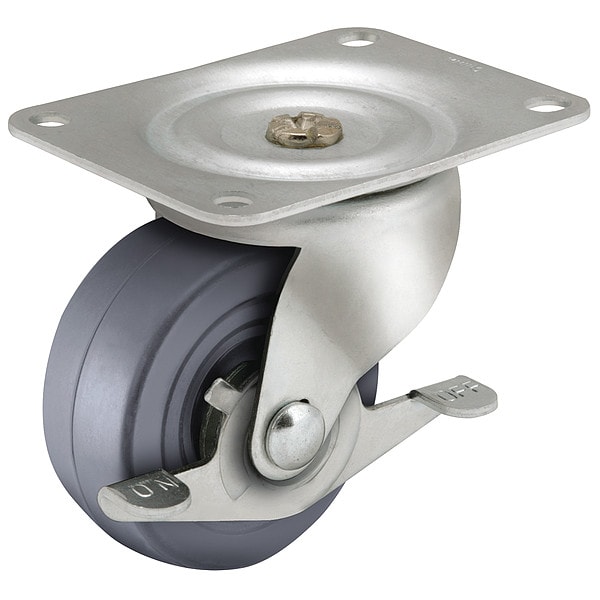

3" X 1-1/4" Non-Marking Rubber Hard Swivel Caster, Side Brake, Loads Up To 225 lb

  • Mfr # PSQ30119ZN-3HB

  • Zoro # G7807286

product price:
$
17.99
/ea

Key Features

Outside Bolt Hole Spacing
2 3/8 in x 3 7/16 in
Core Color
Gray
Mounting Height
3 13/16 in
Swivel Radius
3 1/4 in
Wheel/Tread Material
Rubber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PSQ30119ZN-3HB
Zoro #
G7807286
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
3 13/16 in
Swivel Radius
3 1/4 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 in
Hub Length
1 9/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Wheel Width
1 1/4 in
For Axle Dia.
5/16 in
Outside Slot Spacing - Length
3.438 in
Outside Slot Spacing - Width
2.375 in
Mounting Plate Length
4 1/8 in
Mounting Plate Thickness
1/8 in
Mounting Plate Width
3 1/8 in
Inside Slot Spacing - Width
2.375 in
Inside Slot Spacing - Length
3.375 in

Details

Outside Bolt Hole Spacing
2 3/8 in x 3 7/16 in
Core Color
Gray
Wheel/Tread Material
Rubber
NSF Listed
No
Frame Finish
Zinc Plated
Wheel/Tread Color
Gray
ESD Conductive
No
Inside Bolt Hole Spacing
2 3/8 in x 3 3/8 in
Caster Sub-Type
Swivel
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Non-Marking
Yes
Operating Temperature Range
-40 to 160 Degrees F
Wheel Bearing Type
Plain
Load Rating
225 lb
Swivel Raceway Type
Single Ball
Caster Frame Material
Steel
Number of Wheels
1
Wheel Core Type
Solid
Application
Store Fixtures, Furniture, Material Handling, Institutional Equipment, Industrial Equipment
Standards
RoHS Compliant, NSF Listed
Load Rating Range
0 to 299 lb
Number of Mounting Holes
4
Series
General Duty
Swivel Construction
Swivel
Caster Mounting Type
Plate
Tread Shape
Standard
Item
Plate Caster
Frame Color
Silver
Features
Economical Mobility Solution, Nickel Plated Kingpin
For Surface Type
Asphalt, Ceramic, Rubber, Steel, Tile, Vinyl, Wood
Caster Brake Type
Side Brake
Caster Plate Hole Pattern
C
Swivel Lock Type
No Lock Included
Swivel Bearing Seal Type
Open
Load Capacity - Maximum
225 lb
Wheel Hardness Rating
80 Shore D
Mounting Hole Type
Slot
Brake Location
Right Side
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 225 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
