  6. 3" X 13/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 120 lb

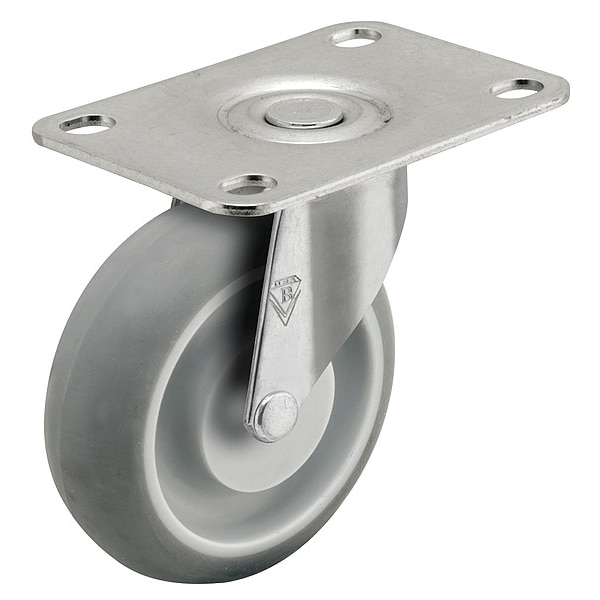

Shepherd Hardware 3" X 13/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 120 lb PRE30120ZN-MNT - main

3" X 13/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 120 lb

  • Mfr # PRE30120ZN-MNT

  • Zoro # G7811580

product price:  $13.75
/ea

Key Features

Number of Wheels
1
Mounting Height
3-1/2 in
Load Rating
120 lb
Wheel Bearing Type
Plain
Wheel Width
7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRE30120ZN-MNT
Zoro #
G7811580
UPC #
-
Country of Origin
United States

Dimensions

Mounting Height
3-1/2 in
Wheel Width
7/8 in
Wheel Dia.
3 in
Swivel Radius
2 1/2 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Bolt Dia.
5/16 in
For Axle Dia.
1/4 in
Hub Length
1 3/32 in
Mounting Plate Width
2 5/8 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
3/32 in
Outside Slot Spacing - Length
3 in
Mounting Plate Length
3 3/4 in
Inside Slot Spacing - Length
2.75 in

Details

Number of Wheels
1
Load Rating
120 lb
Wheel Bearing Type
Plain
NSF Listed
No
Caster Plate Hole Pattern
C
Caster Mounting Type
Plate
Swivel Raceway Type
Double Ball
Operating Temperature Range
-45 to 180 Degrees F
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Number of Mounting Holes
4
Caster Frame Material
Steel
Standards
RoHS Compliant, NSF Listed
ESD Conductive
No
Swivel Lock Type
No Lock Included
Non-Marking
Yes
Includes Thread Guards
No
Caster Sub-Type
Swivel
Frame Color
Silver
Tread Shape
Donut
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Caster Stem Type
Top Plate
Item
Swivel Caster
Wheel/Tread Color
Grey
Frame Finish
Zinc Plated
Caster Brake Type
No Brake
Core Color
Black
Features
Corrosion Resistant, Chemical Resistant
Wheel Core Type
Solid
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Wheel/Tread Material
Rubber
Series
Regent
Wheel/Tread Hardness Rating
Soft
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Load Rating Range
0 to 299 lb
Wheel Core Material
Polypropylene
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
120 lb
Mounting Hole Type
Slot
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 120 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 7/8 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
