Shepherd Hardware 3" X 13/16" Rubber No-Matic Swivel Caster, No Brake, Loads Up To 110 lb PRE30120ZN-NOM - main

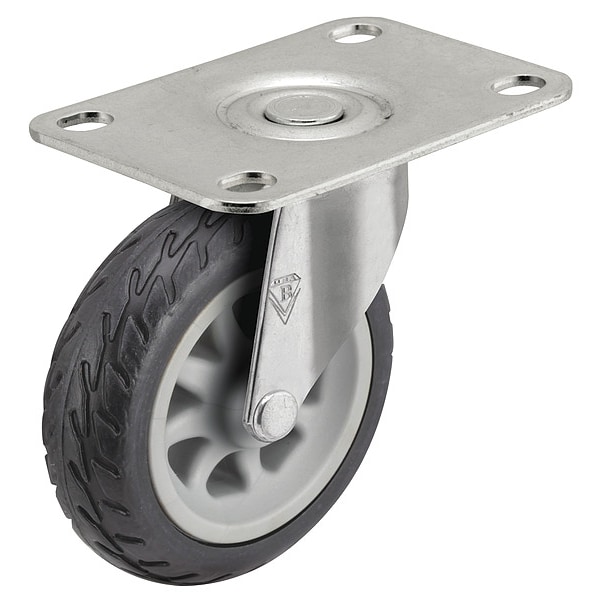

3" X 13/16" Rubber No-Matic Swivel Caster, No Brake, Loads Up To 110 lb

  • Mfr # PRE30120ZN-NOM

  • Zoro # G7812554

product price:  $14.99
/ea

Key Features

Caster Plate Hole Pattern
C
Wheel Dia.
3 in
Load Rating Range
0 to 299 lb
Features
Corrosion Resistant, Chemical Resistant
Swivel Radius
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PRE30120ZN-NOM
Zoro #
G7812554
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
3 in
Swivel Radius
2 1/2 in
For Axle Dia.
1/4 in
Wheel Width
7/8 in
Hub Length
31/32 in
Mounting Bolt Dia.
5/16 in
Mounting Height
3-1/2 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 5/8 in
Inside Slot Spacing - Length
2.75 in
Outside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
3/32 in
Mounting Plate Length
3 3/4 in

Details

Caster Plate Hole Pattern
C
Load Rating Range
0 to 299 lb
Item
Swivel Caster
Features
Corrosion Resistant, Chemical Resistant
Number of Wheels
1
Tread Shape
Standard
Frame Color
Silver
Includes Thread Guards
No
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Number of Mounting Holes
4
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Series
Regent
Swivel Raceway Type
Double Ball
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Caster Sub-Type
Swivel
Wheel Core Material
Polypropylene
Caster Brake Type
No Brake
Core Color
Grey
Wheel/Tread Color
Black/Grey
Frame Finish
Zinc Plated
Load Rating
110 lb
Swivel Lock Type
No Lock Included
Non-Marking
No
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Wheel Bearing Type
Plain
Wheel Core Type
Spoke
NSF Listed
No
Caster Mounting Type
Plate
ESD Conductive
No
Caster Frame Material
Steel
Wheel/Tread Material
Polypropylene
Wheel/Tread Hardness Rating
Soft
Caster Stem Type
Top Plate
Standards
RoHS Compliant, NSF Listed
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Load Capacity - Maximum
110 lb
Wheel Hardness Rating
70 Shore A
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing

Description

Swivel, Plate Caster, Load Rating 150 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 7/8 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polypropylene, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
