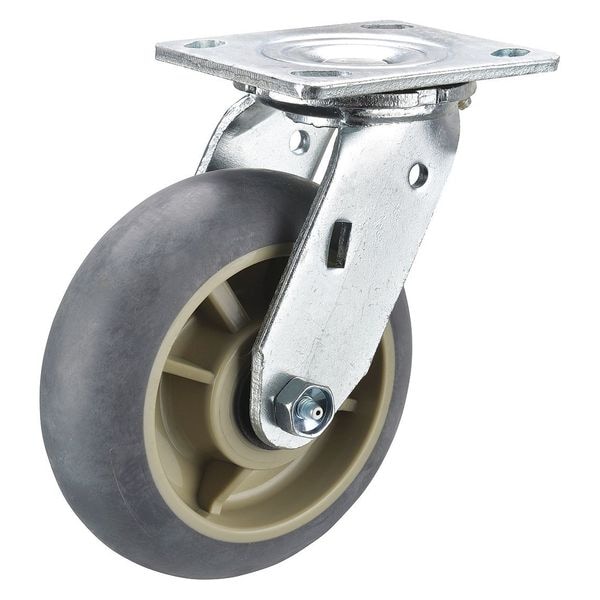

Zoro Select Swivel Plate Caster, Rubber, 6 in, 600 lb, Prcsn Bll P21S-RCP060KP-14-H7 - main

Swivel Plate Caster, Rubber, 6 in, 600 lb, Prcsn Bll

  • Mfr # P21S-RCP060KP-14-H7

  • Zoro # G0619087

product price:  $33.65
/ea

Key Features

Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Plate Hole Pattern
B
Wheel Dia.
6 in
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-RCP060KP-14-H7
Zoro #
G0619087
UPC #
190735406229
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Overall Height
7-1/4in
Swivel Radius
4 3/4 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
7 1/4 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in

Details

Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Extended Lead
No
Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Load Rating
500 lb
Core Color
Gray
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Includes
Spanner Bushing
Item
Swivel Caster
Wheel Color
Gray
Standards
ANSI ICWM
Thread Guards
No
Number of Wheels
1
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-RCP-060x020/050KP
Caster Brake Type
No Brake
Tread Color
Gray
Tread
Crowned
Caster Mounting Type
Plate
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Ball
Tread Shape
Donut Tread
Wheel Core Material
Polypropylene
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Load Rating Range
Light-Medium Duty
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
ESD Conductive
No
Accessories
Optional: P-DL21-14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
500 lb
Series
P21 Series
Load Capacity - Maximum
500 lb
Wheel Hardness Rating
65 Shore A
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
