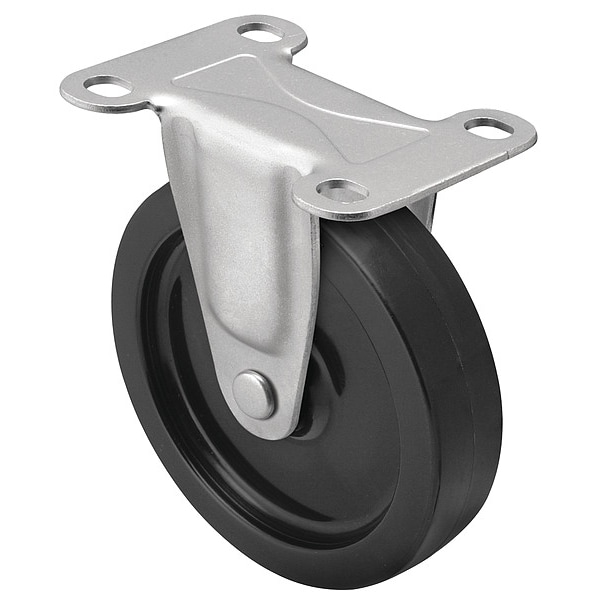

Shepherd Hardware 4" X 15/16" Non-Marking Polyolefin Rigid Caster, No Brake, Loads Up To 150 lb PRI40120ZN-3E - main

4" X 15/16" Non-Marking Polyolefin Rigid Caster, No Brake, Loads Up To 150 lb

  • Mfr # PRI40120ZN-3E

  • Zoro # G7811888

product price:  $8.19
/ea

Key Features

Mounting Plate Size
2 5/8 in x 3 3/4 in
For Axle Dia.
5/16 in
Caster Stem Type
Top Plate
Load Rating
150 lb
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PRI40120ZN-3E
Zoro #
G7811888
UPC #
-
Country of Origin
United States

Dimensions

Mounting Plate Size
2 5/8 in x 3 3/4 in
For Axle Dia.
5/16 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
4 in
Hub Length
1 5/32 in
Wheel Width
1 in
Mounting Height
4-7/8 in
Mounting Plate Thickness
3/32 in
Inside Slot Spacing - Length
2.75 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 5/8 in
Outside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
3 3/4 in

Details

Caster Stem Type
Top Plate
Load Rating
150 lb
Wheel Bearing Type
Plain
Frame Finish
Zinc Plated
Caster Sub-Type
Rigid
Number of Wheels
1
Includes Thread Guards
No
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Features
Corrosion Resistant, Chemical Resistant
Series
Regent
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Wheel Core Material
Polyolefin
Tread Shape
Standard
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Wheel Core Type
Solid
Caster Plate Hole Pattern
C
Caster Brake Type
No Brake
ESD Conductive
No
Item
Rigid Caster
NSF Listed
No
Wheel/Tread Color
Black
Frame Color
Silver
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Load Rating Range
0 to 299 lb
Non-Marking
Yes
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Wheel/Tread Hardness Rating
Hard
Standards
RoHS Compliant, NSF Listed
Number of Mounting Holes
4
Wheel/Tread Material
Polyolefin
Caster Mounting Type
Plate
Core Color
Black
Operating Temperature Range
-20 to 180 Degrees F
Load Capacity - Maximum
150 lb
Wheel Hardness Rating
70 Shore D
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 150 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
