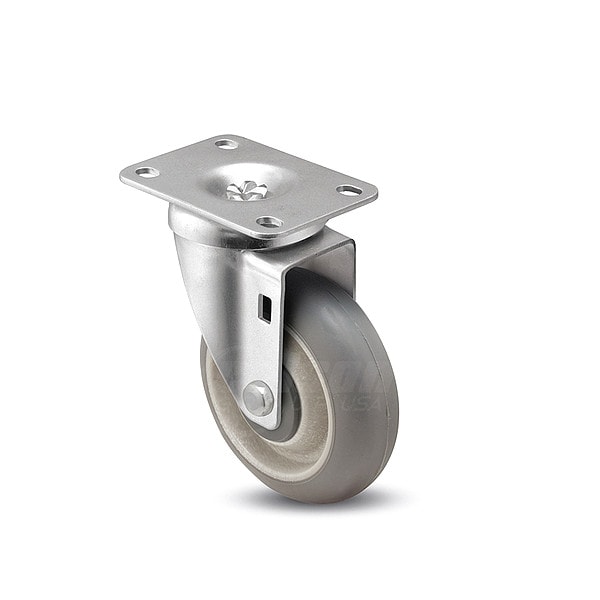

Shepherd Hardware 4" X 1-1/4" Non-Marking Monotech (Donut) Swivel Caster, Partial Thread Guard, Loads Up To 250 lb PGS40120ZN-DMT32(GG) - main

4" X 1-1/4" Non-Marking Monotech (Donut) Swivel Caster, Partial Thread Guard, Loads Up To 250 lb

  • Mfr # PGS40120ZN-DMT32(GG)

  • Zoro # G7812798

product price:  $27.89
/ea

Key Features

Outside Bolt Hole Spacing
1-3/4 in X 3 in
For Axle Dia.
3/8 in
Frame Color
Silver
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PGS40120ZN-DMT32(GG)
Zoro #
G7812798
UPC #
-
Country of Origin
China

Dimensions

For Axle Dia.
3/8 in
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Hub Length
1 5/8 in
Swivel Radius
3 3/8 in
Wheel Width
1 1/4 in
Mounting Height
5-1/4 in
Mounting Plate Width
2 1/2 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.75 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in
Mounting Plate Thickness
5/32 in
Mounting Plate Length
3 5/8 in

Details

Outside Bolt Hole Spacing
1-3/4 in X 3 in
Frame Color
Silver
Load Rating Range
0 to 299 lb
Item
Swivel Caster
Load Rating
250 lb
Caster Plate Hole Pattern
C
Caster Brake Type
No Brake
Wheel/Tread Material
Rubber
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Caster Mounting Type
Plate
Tread Shape
Donut
Wheel/Tread Color
Grey
Non-Marking
Yes
Wheel Core Type
Solid
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Number of Mounting Holes
4
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Swivel Raceway Type
Precision Ball
Series
Institutional
Standards
RoHS
Application
Store Fixtures, Storage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
ESD Conductive
No
Operating Temperature Range
-45 to 180 Degrees F
Core Color
Black
NSF Listed
No
Caster Stem Type
Top Plate
Features
High Strength Steel, Raceway Dust Cap
Includes Thread Guards
Yes
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Number of Wheels
1
Swivel Bearing Seal Type
Open
Swivel Construction
Swivel
Wheel Core Material
Polypropylene
Load Capacity - Maximum
250 lb
Wheel Hardness Rating
65 Shore A
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
