  11. Swivel NSF-Listed Plate Caster, 300 lb., NSF-Listed Plate Type A
Shop All Plate Casters
Zoro Select

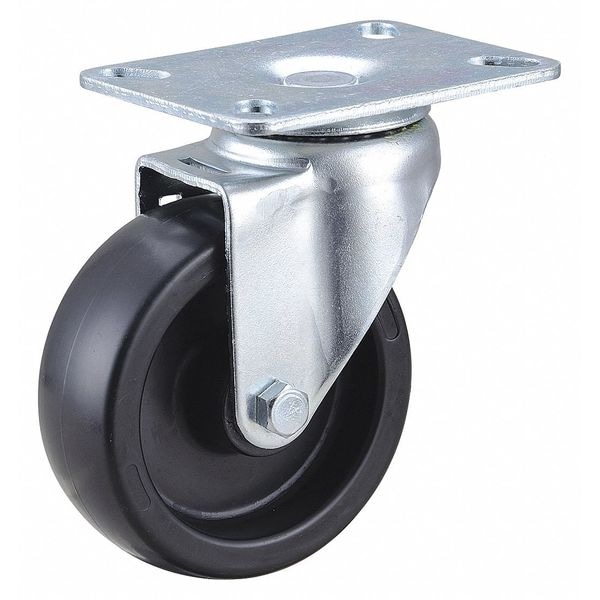

Swivel NSF-Listed Plate Caster, 300 lb., NSF-Listed Plate Type A

product price: $10.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyolefin
See all product information

Product Information

Dimensions

Overall Height 5-3/16"
Wheel Dia. 4 in
Wheel Width 1 1/2 in
Stem Dia. No Stem
Caster Plate Size 3-1/8" x 4-1/8"
Mounting Bolt Dia. 5/16 in
Plate Size 3-1/8" x 4-1/8"
Mounting Height 5 3/16 in
Mounting Plate Size 3 1/8 in x 4 1/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyolefin
Load Rating 300 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Swivel Lock Type No Lock Included
Caster Wheel Bearings Plain
Caster Plate Thickness 5/32"
Standards ANSI/ICWM
Caster Plate Hole Pattern A
Wheel Color Black
Caster Min. Temp. -20 Degrees F
Caster Core Material Polyolefin
Frame Finish Zinc Plated
Application Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Thread Guards No
Extended Lead No
Caster Raceway Double Ball
Caster Temp. Range Available Yes
Caster Frame Material Steel
Frame Material Steel
Plate Thickness 5/32"
Item NSF-Listed Sanitary Plate Caster
Replacement Wheel IB0404106G
Caster Temp. Range -20 Degrees to 180 Degrees F
Outside Bolt Hole Spacing 2-3/8 in x 3-3/8 in
Plate Caster Bolt Hole Pattern A
Core Color Black
Caster Max. Temp. 180 Degrees F
Durometer 70 Shore D
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Caster Product Group Swivel Caster
Non-Marking Yes
Caster Brake Type No Brake Included
Number of Mounting Holes 4
Tread Shape Standard
Includes Thread Guards No
Wheel Bearing Type Plain
Wheel Core Material Plastic
Swivel Construction Kingpin
Mounting Plate Bolt Hole Pattern A
Load Rating Range 300 to 999 lb
Swivel Raceway Type Double Ball
Swivel Lock Type No Lock Included
Wheel/Tread Hardness 65 Shore D
Wheel/Tread Hardness Rating Hard
Wheel/Tread Material Polyolefin
Wheel/Tread Color Black

Description

Swivel, NSF-Listed Sanitary Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
