Shop SHEPHERD HARDWARE

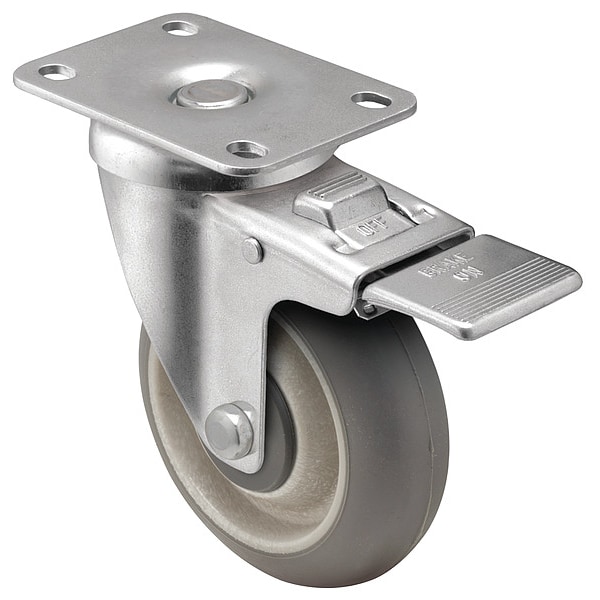

4" X 1-1/4" Non-Marking Monotech (Donut) Swivel Caster, Top Lock Brake, Loads Up To 250 lb

  • Mfr # PGT40120ZN-DMT32(GG)

  • Zoro # G7810759

product price:  $34.55
/ea

Key Features

Wheel Core Type
Solid
Wheel/Tread Color
Grey
Mounting Height
5-1/4 in
Swivel Radius
4 3/8 in
Operating Temperature Range
-45 to 180 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PGT40120ZN-DMT32(GG)
Zoro #
G7810759
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
5-1/4 in
Swivel Radius
4 3/8 in
For Axle Dia.
3/8 in
Wheel Width
1 1/4 in
Hub Length
1 5/8 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Mounting Plate Width
2 1/2 in
Inside Slot Spacing - Length
2.75 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
5/32 in
Outside Slot Spacing - Length
3 in

Details

Wheel Core Type
Solid
Wheel/Tread Color
Grey
Operating Temperature Range
-45 to 180 Degrees F
Includes Thread Guards
Yes
Core Color
Black
Wheel/Tread Material
Rubber
Application
Store Fixtures, Storage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Frame Color
Silver
ESD Conductive
No
NSF Listed
No
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Caster Stem Type
Top Plate
Series
Institutional
Caster Sub-Type
Swivel
Number of Mounting Holes
4
Non-Marking
Yes
Standards
RoHS
Features
High Strength Steel, Raceway Dust Cap
Wheel Bearing Type
Ball
Caster Frame Material
Steel
Load Rating
250 lb
Swivel Lock Type
Total Lock
Wheel/Tread Hardness Rating
Soft
Number of Wheels
1
Item
Plate Caster
Tread Shape
Donut
Caster Brake Type
Total Lock
Frame Finish
Zinc Plated
Load Rating Range
0 to 299 lb
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Caster Plate Hole Pattern
C
Swivel Bearing Seal Type
Open
Swivel Construction
Swivel
Wheel Core Material
Polypropylene
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
250 lb
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing
Mounting Hole Type
Slot
Brake Location
Face

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Donut
