  6. 4" X 1-1/4" Non-Marking Polyurethane Swivel Caster, Full Thread Guard, Loads Up To 300 lb
Shepherd Hardware 4" X 1-1/4" Non-Marking Polyurethane Swivel Caster, Full Thread Guard, Loads Up To 300 lb PGS40120ZN-TPU33(GG) - main

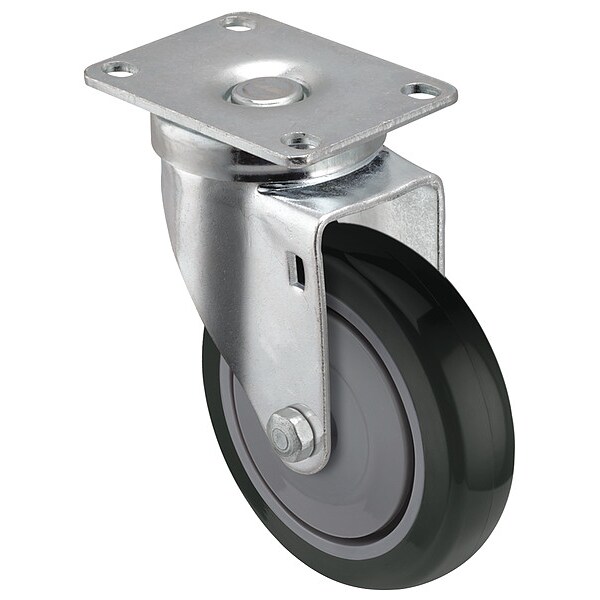

4" X 1-1/4" Non-Marking Polyurethane Swivel Caster, Full Thread Guard, Loads Up To 300 lb

  • Mfr # PGS40120ZN-TPU33(GG)

  • Zoro # G7812719

product price:  $31.15
/ea

Key Features

Caster Stem Type
Top Plate
Mounting Height
5-1/4 in
Core Color
Grey
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PGS40120ZN-TPU33(GG)
Zoro #
G7812719
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
5-1/4 in
Mounting Bolt Dia.
5/16 in
For Axle Dia.
3/8 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Swivel Radius
3 3/8 in
Wheel Dia.
4 in
Hub Length
1 5/8 in
Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.75 in
Mounting Plate Width
2 1/2 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Length
3 5/8 in
Mounting Plate Thickness
5/32 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in

Details

Caster Stem Type
Top Plate
Core Color
Grey
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Caster Mounting Type
Plate
Standards
RoHS
Caster Frame Material
Steel
Number of Wheels
1
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Wheel/Tread Material
Polyurethane
Frame Color
Silver
Operating Temperature Range
-40 to 180 Degrees F
Wheel Core Material
Polypropylene
Caster Plate Hole Pattern
C
ESD Conductive
No
Series
Institutional
Includes Thread Guards
Yes
NSF Listed
No
Swivel Lock Type
No Lock Included
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Rubber, Steel, Tile, Wood
Caster Sub-Type
Swivel
Features
High Strength Steel, Raceway Dust Cap
Item
Swivel Caster
Load Rating
300 lb
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Number of Mounting Holes
4
Swivel Raceway Type
Precision Ball
Load Rating Range
300 to 999 lb
Application
Store Fixtures, Storage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Non-Marking
Yes
Wheel Core Type
Solid
Frame Finish
Zinc Plated
Wheel/Tread Color
Grey
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Swivel Bearing Seal Type
Open
Swivel Construction
Swivel
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
300 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
