  6. 4" X 15/16" Non-Marking Rubber Soft Swivel Caster, Tread Lock Brake, Loads Up To 125 lb

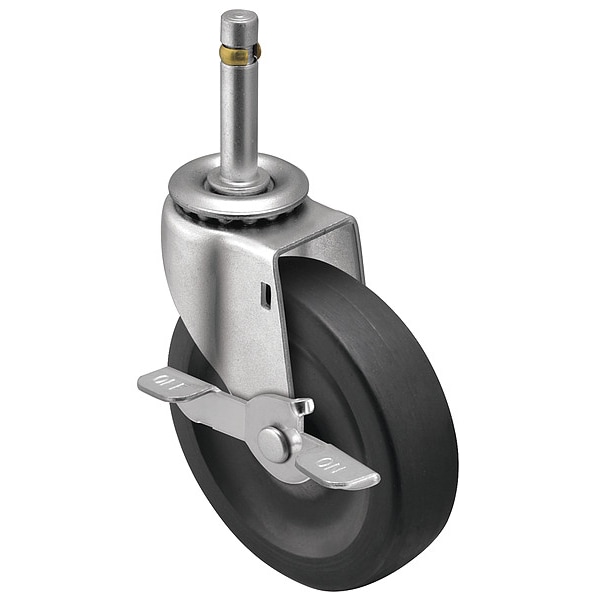

Shepherd Hardware 4" X 15/16" Non-Marking Rubber Soft Swivel Caster, Tread Lock Brake, Loads Up To 125 lb PRE40273ZN-3RB - main

4" X 15/16" Non-Marking Rubber Soft Swivel Caster, Tread Lock Brake, Loads Up To 125 lb

  • Mfr # PRE40273ZN-3RB

  • Zoro # G7808546

product price:  $16.69
/ea

Key Features

Caster Sub-Type
Swivel
Caster Frame Material
Steel
Wheel Type
Solid
Operating Temperature Range
-40 to 160 Degrees F
System of Measurement
Inch
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRE40273ZN-3RB
Zoro #
G7808546
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4 3/4 in
Wheel Dia.
4 in
Stem Length
1-3/8 in
Wheel Width
1 in
Mounting Height
4-3/4 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1 3/8 in

Details

Caster Sub-Type
Swivel
Caster Frame Material
Steel
Wheel Type
Solid
Operating Temperature Range
-40 to 160 Degrees F
System of Measurement
Inch
Non-Marking
Yes
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Caster Mounting Type
Stem
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Core Color
Black
Series
Regent
Wheel Core Material
Polyolefin
Caster Stem Type
Friction Ring
Number of Wheels
1
Features
Octagon Washer for Easy Installation, High Strength, Durability, Resistant to Most Chemicals and Oils, Cushioned Ride, Floor Protection
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Plain
Frame Finish
Zinc Plated
Wheel/Tread Color
Black
Standards
NSF Approved, RoHS Compliant
Swivel Lock Type
No Lock Included
Load Rating
125 lb
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Item
Swivel Caster with Brake
Swivel Construction
Swivel
NSF Listed
No
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Swivel Bearing Seal Type
Open
Number of Mounting Holes
0
Wheel Core Type
Solid
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
125 lb
For Surface Type
Asphalt, Ceramic, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Stem Caster, Swivel Caster with Brake, 125 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 4 3/4 in Mounting Height, Plain, 7/16 in x 1 3/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
