Shop SHEPHERD HARDWARE

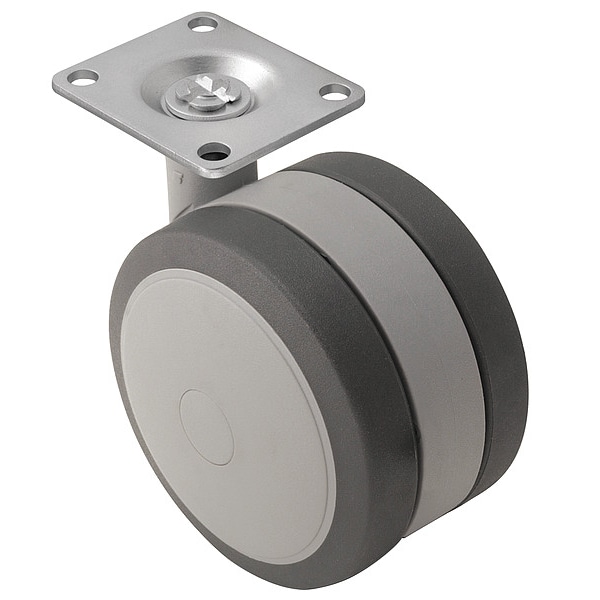

50mm Non-Marking Thermoplastic Elastomer Swivel Caster, No Brake, Loads Up To 75 lb

  • Mfr # PSF50101GR

  • Zoro # G7807889

product price:
$
9.15
/ea

Key Features

Caster Brake Type
No Brake
Outside Bolt Hole Spacing
1 in x 1 in
Caster Frame Material
Nylon
Application
Store Fixtures, Electronic Equipment, Audio/Visual Equipment, Furniture, Medical Equipment
System of Measurement
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PSF50101GR
Zoro #
G7807889
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
2 in
Mounting Bolt Dia.
3/16 in
Mounting Height
2 3/8 in
Mounting Plate Size
1 1/2 in x 1 1/2 in
Swivel Radius
2 3/8 in
Mounting Plate Length
1 1/2 in
Overall Wheel Width
1 3/4 in
For Axle Dia.
1/4 in
Bolt Hole Spacing - Length
1 in
Mounting Plate Thickness
3/32 in
Bolt Hole Spacing - Width
1 in
Mounting Plate Width
1 1/2 in

Details

Caster Brake Type
No Brake
Outside Bolt Hole Spacing
1 in x 1 in
Caster Frame Material
Nylon
Application
Store Fixtures, Electronic Equipment, Audio/Visual Equipment, Furniture, Medical Equipment
System of Measurement
Inch
Wheel/Tread Color
Gray
Non-Marking
Yes
Frame Finish
Grey
ESD Conductive
No
Load Rating Range
0 to 299 lb
Swivel Lock Type
No Lock Included
Caster Mounting Type
Plate
Wheel Core Type
Solid
Wheel/Tread Material
Thermoplastic Rubber
Core Color
Gray
Tread Shape
Standard
Item
Plate Caster
Series
Softech
Features
Quiet Mobility, Riveted Axle, Floor Protective
Wheel/Tread Hardness Rating
Soft
Caster Sub-Type
Swivel
Number of Wheels
2
Caster Plate Hole Pattern
D
Load Rating
75 lb
Standards
RoHS
Number of Mounting Holes
4
Inside Bolt Hole Spacing
1 in x 1 in
Operating Temperature Range
-40 to 180 Degrees F
NSF Listed
No
Includes Thread Guards
No
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Wheel Core Material
Nylon
Wheel Bearing Type
Plain
Load Capacity - Maximum
75 lb
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Square
Wheel Hardness Rating
70 Shore A

Description

Swivel, Plate Caster, Load Rating 75 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width Not Applicable, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
