  9. Tachometer, 0.10 to 25,000 rpm

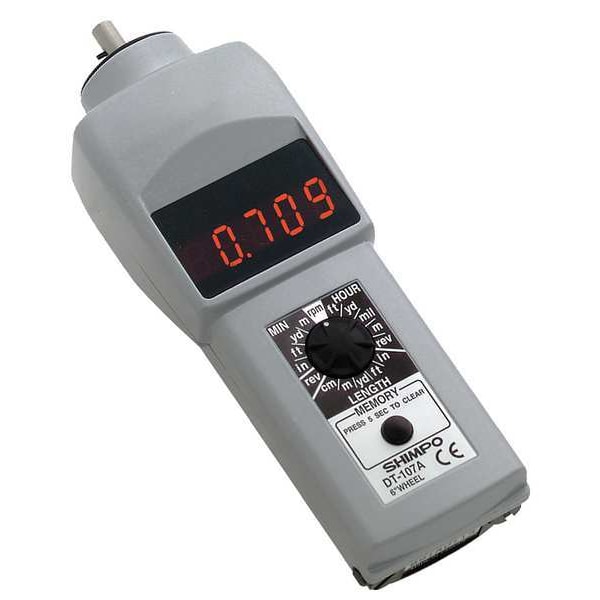

Shimpo Tachometer, 0.10 to 25,000 rpm DT-107A - main

Tachometer, 0.10 to 25,000 rpm

  • Mfr # DT-107A

  • Zoro # G5276241

product price: $311.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Cone Adapters, 3.5 in Extension Shaft, Carrying Case, Funnel Adapter, Master Wheel (6 in cir.)
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Cast Aluminum Housing
RPM Resolution
1 RPM
Contact / Noncontact
Contact
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DT-107A
Zoro #
G5276241
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Battery Size
AA
Manufacturer Warranty Length
2 yr

Details

Item
Tachometer
Includes
(2) Cone Adapters, 3.5 in Extension Shaft, Carrying Case, Funnel Adapter, Master Wheel (6 in cir.)
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Cast Aluminum Housing
RPM Resolution
1 RPM
Contact / Noncontact
Contact
Memory
Last/Min/Max/10 user logged measurements, retained for 5 minutes
Display
5 Digit LED
Standards
CE
Contact RPM Range
0.10 to 25,000
Speed (FPM)
0.05 to 12,500
Speed (M/Min)
0.02 to 3810
Speed Accuracy
+/-0.06% of Reading +/-1 Digit
Calibration Certificate
NIST
Minimum Operating Temperature
32 Degrees F
Maximum Velocity Measured
12,500 fpm
Minimum Contact RPM
0.1 RPM
Number of Digits
5
Minimum Velocity Measured
0.05 fpm
Batteries Included
Yes
Battery Run Time
40 hr
Maximum Contact RPM
25,000 RPM
Calibration Certificate Type
NIST
Number of Batteries Required
2
Battery Voltage
1.5V
Rotational Speed Measuring Units
ft/hr, ft/min, in/min, m/min, m/hr, RPH, RPM, yd/hr, yd/min
Maximum Operating Temperature
113 Degrees F
Contact Type
Contact
Contact Adaptors Included
Cone Tip, Funnel
Digital Display Screen Type
LED

Description

Tachometer, RPM Accuracy +/-0.006 Percent, RPM Resolution 1 RPM, Maximum Contact RPM 25,000 RPM, Minimum Contact RPM 0.1 RPM, Maximum Non-Contact RPM Not Applicable, Minimum Non-Contact RPM Not Applicable, Maximum Non-Contact Distance Not Applicable, Minimum Non-Contact Distance Not Applicable, Calibration Certificate Type NIST, Maximum Velocity Measured 12,500 fpm, Minimum Velocity Measured 0.05 fpm
