  9. Tachometer, 6 to 99,999 rpm
Shop All Tachometers
Shimpo

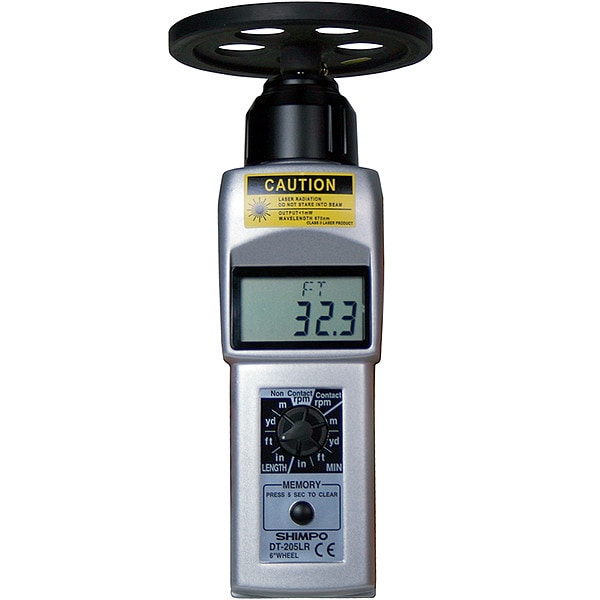

Tachometer, 6 to 99,999 rpm

original price: $415.10
5% off
new price: $392.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact / Noncontact Contact and Noncontact
  • Contact RPM Range 0.8 to 25,000
  • Noncontact RPM Range 6 to 99,999
  • Speed (FPM) 0.80 to 25,000
  • Light Source Laser
See all product information

Product Information

  • Brand Shimpo
  • MFR # DT-205LR-S12
  • Zoro # G8487735
  • Country of Origin Taiwan, Province of China
  • Category Tachometers

Dimensions

Manufacturer Warranty Length 2 yr
Battery Size AA

Details

Item Tachometer
Contact / Noncontact Contact and Noncontact
Contact RPM Range 0.8 to 25,000
Noncontact RPM Range 6 to 99,999
Speed (FPM) 0.80 to 25,000
Light Source Laser
Features Built-In Memory 10 Separate Readings, Laser Measures from Distances
Speed Accuracy +/-0.06% of Reading +/-1 Digit
RPM Accuracy +/-0.006%
Calibration Certificate NIST
Includes (2) Cone Adapters, 3.5 in Extension Shaft, Contact Adapter, Funnel Adapter, Master Wheel (6 in cir.), Reflective Tape
Working Distance 20 ft
Display 5 digit LCD
Speed (M/Min) 0.23 to 7620
Memory Last/Min/Max
Standards CE
RPM Resolution 1 RPM
Minimum Non-Contact Distance 1 in
Number of Batteries Required 2
Minimum Operating Temperature 32 Degrees F
Maximum Non-Contact Distance 20 ft
Maximum Operating Temperature 113 Degrees F
Minimum Non-Contact RPM 6 RPM
Maximum Velocity Measured 25,000 fpm
Maximum Contact RPM 25,000 RPM
Battery Run Time 25 hr
Digital Display Screen Type LCD
Batteries Included Yes
Contact Type Contact, Non-Contact
Minimum Contact RPM 0.8 RPM
Number of Digits 5
Minimum Velocity Measured 0.4 fpm
Battery Voltage 1.5V
Contact Adaptors Included Cone Tip, Funnel
Maximum Non-Contact RPM 99,999 RPM
Calibration Certificate Type NIST
Rotational Speed Measuring Units ft/min, in/min, m/min, RPM, yd/min

Description

Tachometer, RPM Accuracy +/-0.006 Percent, RPM Resolution 1 RPM, Maximum Contact RPM 25,000 RPM, Minimum Contact RPM 0.8 RPM, Maximum Non-Contact RPM 99,999 RPM, Minimum Non-Contact RPM 6 RPM, Maximum Non-Contact Distance 20 ft, Minimum Non-Contact Distance 1 in, Calibration Certificate Type NIST, Maximum Velocity Measured 25,000 fpm, Minimum Velocity Measured 0.4 fpm, Includes (2) Cone Adapters, 3.5 in Extension Shaft, Contact Adapter, Funnel Adapter, Master Wheel (6 in cir.), Reflective Tape
