  11. Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.35 in I.D. Before Shrinking

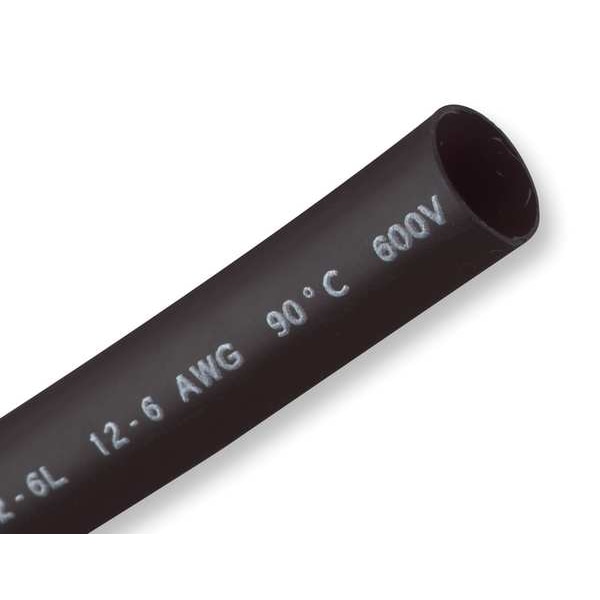

Shrink-Kon Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.35 in I.D. Before Shrinking HS16-12-4 - main

Adhesive Lined Heat Shrink Tube, Heavy Wall, 3:1 I.D. Shrink Ratio, 0.35 in I.D. Before Shrinking

  • Mfr # HS16-12-4

  • Zoro # G3141661

product price: $104.99
/pk 5, $21.00/ea
Free Shipping & Returns

Key Features

Shrink Ratio
3:1
Wall Type
Heavy Wall
Shrink Tubing I.D. After Shrinking
0.12 in
Material
Cross-Linked Polyolefin
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HS16-12-4
Zoro #
G3141661
UPC #
00786210898346
Country of Origin
United States

Dimensions

Length
4 ft
Use with Wire Size
14 to 10 AWG
Shrink Tubing Wall Thickness After Shrinking
0.07 in
Use With Wire Size
14 AWG to 10 AWG
Wall Thickness After Shrinking
0.07 in
Fits AL/CU Splice with Max. Length
1

Details

Item
Adhesive Lined Heat Shrink Tube
Shrink Ratio
3:1
Wall Type
Heavy Wall
Shrink Tubing I.D. After Shrinking
0.12 in
Material
Cross-Linked Polyolefin
Color
Black
Temp. Range
-67° to 230°F
Min. Shrink Temp.
248°F
Features
Adhesive Lined
Shrink Tubing I.D. Before Shrinking
0.35 in
Standards
CSA 22.2, UL 224, 120 Degrees C
Flame Retardant
No
Max. Voltage
600 V
Adhesive Lined
Yes
Tubing Wall Type
Heavy Wall
Dielectric Strength
600 V
Min. Temp. Rating
-67 Degrees F
Shrink Tubing Properties
High Heat Resistant
Package Style
Individual Pieces
Max. Temp. Rating
230 Degrees F
Voltage Rating
600V
Nominal Recovered Wall (inches)
0.07
Special Features
Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced.
UL approval
Yes
Model
Thick-walled
I.D. After Shrinking
0.12 in
I.D. Before Shrinking
0.35 in

Description

Heat Shrink Tubing, Heavy Wall, Material Cross-Linked Polyolefin with Adhesive, Flame Retardant No, Adhesive Lined Yes, Shrink Ratio 3:1, Use With Wire Size 14 AWG to 10 AWG, I.D. Before Shrinking 0.35 in, I.D. After Shrinking 0.12 in, Wall Thickness After Shrinking 0.07 in, Length 4 ft, Shrink Tubing Properties High Heat-Resistant, Color Black, Temp. Range -67 Degrees to 230 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F, Dielectric Strength 600 V
