Fiber Optic Sensor Amplifier
Mfr # 6063335
Zoro # G623561749
product price:
$
149.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6063335
- Zoro #
- G623561749
- UPC #
- -
- Country of Origin
- Germany
Description

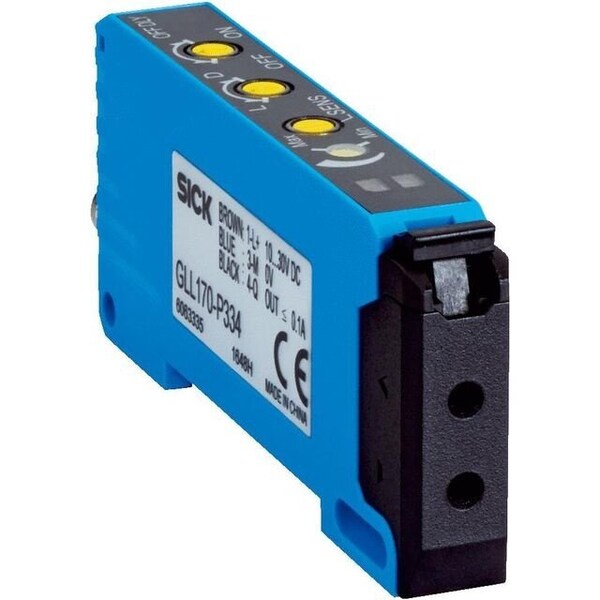

This is a stand-alone fiber-optic sensor amplifier from the SICK GLL170 series designed for precise object detection using fiber optic cables. It supports adjustable sensitivity and switching modes for flexible industrial automation applications. Specifications: -Model: GLL170-P334 -Part Number: 6063335 -Type: Fiber-optic sensor / amplifier -Operating Principle: Fiber-optic sensing -Light Source: LED -Light Type: Visible red light (632 nm) -Sensing Range: up to 800 mm (through-beam system) -Proximity Range: up to 160 mm -Supply Voltage: 10-30 V DC -Current Consumption: -30 mA -Output Type: PNP switching output -Switching Mode: Light/Dark switching (selectable) -Switching Frequency: up to 2 kHz -Response Time: ≤ 250 μs -Adjustment: 8-turn potentiometer (sensitivity) -Display: LED indicators (power, signal, output status) -Connection Type: M8, 4-pin connector -Time Function: 0-40 ms selectable delay -Housing Material: Plastic (PC/POM) -Protection Class: IP66 / IP67 (depending configuration) -Operating Temperature: -25 deg C to +55 deg C -Dimensions: 10 x 31.7 x 72.5 mm
Restrictions
This item has been restricted from sale in the following states:
CA
