  8. Pilot light, Harmony XB7, round green, 22mm, integral LED, faston connectors, 230.240V

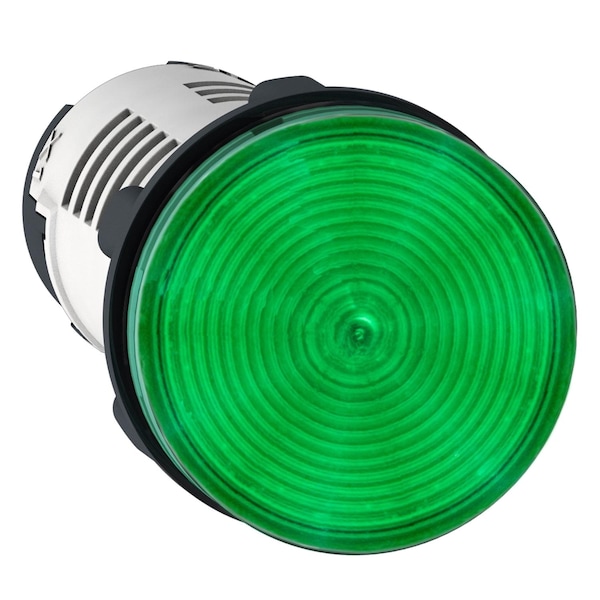

Schneider Electric Pilot light, Harmony XB7, round green, 22mm, integral LED, faston connectors, 230.240V XB7EV03MP3 - main
Shop SCHNEIDER ELECTRIC

Pilot light, Harmony XB7, round green, 22mm, integral LED, faston connectors, 230.240V

  • Mfr # XB7EV03MP3

  • Zoro # G000905340

product price:  $43.45
/ea
Sold in multiples of 10 for $434.50

Key Features

Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
Terminal Connection
Faston
Standards
JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB7EV03MP3
Zoro #
G000905340
UPC #
-
Country of Origin
Indonesia

Dimensions

Panel Cutout Diameter
22 mm
Depth
54 mm
Height
29 mm
Width
29 mm
Mounting Diameter
22 mm

Details

Item
Illuminated Push Button
Operator Illumination
Illuminated
Head Color
Green
Terminal Connection
Faston
Standards
JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
[Us] Rated Supply Voltage
230 to 240 V AC 50/60 Hz
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electromagnetic Compatibility
disturbing field emissionclass B EN 55011
Supply Voltage Limits
195-264 V AC
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TH
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Device Short Name
XB7
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Ambient Air Temperature For Operation
-25-70°C
Operator Additional Information
with plain lens
Light Source
LED
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Nema Degree Of Protection
NEMA 4 UL 50 E || NEMA 12 UL 50 E
Product Or Component Type
pilot light
Connections - Terminals
Faston connectors 1 x 6.35 mm EN/IEC 60947-1 || Faston connectors 2 x 2.8 mm EN/IEC 60947-1
Overvoltage Category
class II IEC 60536
Bulb Base
integral LED
Signalling Type
steady
Shape Of Signaling Unit Head
round
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1
Device Presentation
monolithic product
Cap/Operator Or Lens Colour
green
Terminals Description Iso N°1
(X1-X2)PL
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Current Consumption
16 to 20 mA
Ambient Air Temperature For Storage
-40-70°C
Service Life
70000 h at rated voltage and 25°C
Range of Product
Harmony XB7

Description

Round pilot light 0 22 - green - integra
