Shop TELEMECANIQUE SENSORS

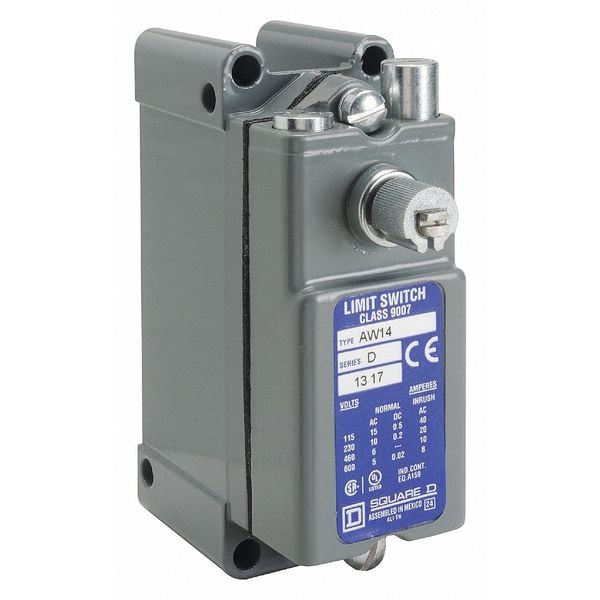

Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 600V AC, Actuator Location: Side

  • Mfr # 9007AW14

  • Zoro # G2400255

product price:
$
395.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9007AW14
Zoro #
G2400255
UPC #
785901807803
Country of Origin
Mexico

Dimensions

Body Width - Limit Switch
3.0 in
Height
3.91"
Body Depth - Limit Switch
1.44 in
Body Height - Limit Switch
3.68 in
Depth
1.40"
Width
3.00"
Body Height
3.68 in
Body Width
3 in
Mounting Hole Diameter
0.2 in
Overall Height
3.68 in
Overall Depth
1.44 in
Arm Length - Maximum
1.38 in
Body Depth
1.44 in
Manufacturer Warranty Length
18 mo
Overall Width
3 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
15A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Series
9007AW
Operating Temp. Range
-65 Degrees to 185 Degrees F
Contact Form - Limit Switch
1NC/1NO
Actuator Style
Rotary Lever
Travel
Total Travel 300 Degrees
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Contact Form
SPDT-DB-1NO/1NC
Electrical Connection
Screw Terminal
Limit Switch Style
Heavy Duty Limit Switch
AC Contact Rating
15 A @ 600 V
Movement
CCW, CW
Boot Sealed Actuator - Limit Switch
No
Standards
CSA, UL Listed
NEMA Rating
1, 12, 13, 2, 4
Body Material
Zinc
Wiring Entry
1/2 in NPT
Actuator Location (Limit Switch)
Side
Actuator Location
Side
Operating Force
2.75 in-lb
Boot Sealed Actuator (Limit Switch)
No
Basic Actuator Style (Limit Switch)
Rotary
DC Contact Rating
15 A @ 600 V
Amps
15
IP Rating
IP65
Voltage Rating
600VAC/DC
Actuator Style (Limit Switch)
Rotary, No Lever
Body Style (Limit Switch)
Standard
Special Features
lateral approach, 1 direction programmable
Differential Travel
2.5 Degrees
Contact Material
silver contacts
Head Type
rotary head
Weight
1.25 lb(US)
Actuation Type
CCW convertible to CW || from left convertible to right
Contact Action
snap action
Min. Actuation Velocity Horizontal
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Operating Temperature - Minimum
-65 Degrees F
Mounting Hole Vertical Center to Center Distance
89 mm
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4
Mounting Style
Surface
Includes Actuator
No Actuator Included
Operating Temperature - Maximum
185 Degrees F
Directional Movement
CCW/CW
Operating Torque - Maximum
2.75 in-lb
Total Travel
30 Degrees
Number of Mounting Holes
6
Pretravel
5 Degrees
Mounting Hole Horizontal Center to Center Distance
27 mm
Overtravel
25 Degrees
Type Of Operator
spring return without operating lever cast zinc
Number Of Poles
1

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 15A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 3.68 in, Body Width - Limit Switch 3 in, Body Depth - Limit Switch 1.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface, Electrical Connection Screw Terminal
