  13. 240VAC Reversing Magnetic Contactor 3P 45A NEMA 2

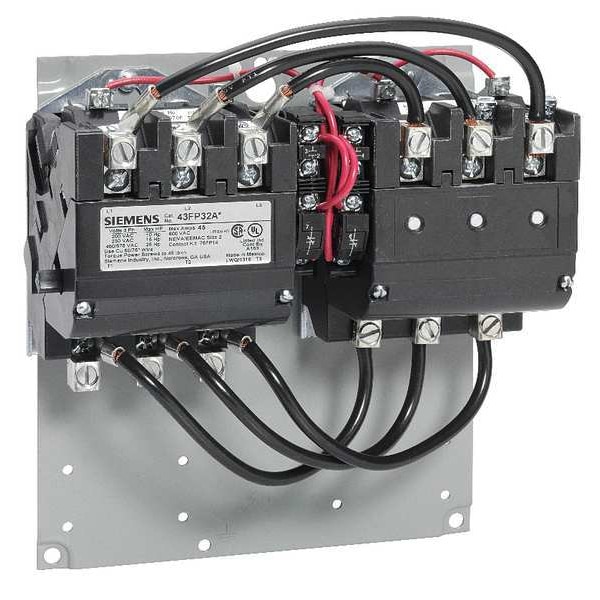

Siemens 240VAC Reversing Magnetic Contactor 3P 45A NEMA 2 43FP32AA - main

240VAC Reversing Magnetic Contactor 3P 45A NEMA 2

  • Mfr # 43FP32AA

  • Zoro # G6370865

product price: $1,710.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
45 A
Action
Reversing
Number of Poles
3
Coil Volts
240V AC
NEMA Contactor Size
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
43FP32AA
Zoro #
G6370865
UPC #
783087078260
Country of Origin
Mexico

Dimensions

NEMA Contactor Size
2
Height
8.94 in
Width
7.75 in
Depth
4.56 in
NEMA Size
2
Mounting Hole Diameter
0.31 in
Overall Height
8.94 in
Overall Depth
4.56 in
Overall Width
7.75 in
Mounting Hole Distance - Width
7.25 in

Details

Item
Magnetic Contactor
Full Load Amps
45 A
Action
Reversing
Number of Poles
3
Coil Volts
240V AC
Reversing
Yes
HP @ 3 Phase - 208V
10 hp
HP @ 3 Phase - 575V
25 hp
HP @ 3 Phase - 240V
15 hp
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 480V
25 hp
Frame / Series / Class / Code
Class 43
Auxiliary Contact Form
2NO/2NC
Hz
60
Standards
REACH Art 33
Series
43
Minimum Operating Temperature
-4 Degrees F
Mounting Style
Surface
Number of Auxillary Contacts
4
Reversing Capability
Reversing
Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
104 Degrees F
Auxiliary Contact Module Capacity
7
Coil Voltage
110-120/220-240V AC
Horsepower @ Three Phase - 208V AC
10 hp
Number of Normally Open Main Contacts
3
Frequency
60 Hz
Mounting Postion
Vertical
Full Load Current - Inductive
45 A
Terminal Connection Type
Screw Terminals
Mechanical Operating Durability
10,000,000
Number of Normally Closed Main Contacts
0
Contactor Style
NEMA
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 480V AC
25 hp
Phase
Three
Horsepower @ Three Phase - 240V AC
15 hp
Full Load Current - Resistive
Not Rated
Response Time
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 600V AC
25 hp
NEMA Enclosure Rating
No Enclosure

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 110-120/220-240V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Full Load Current - Resistive Not Rated, Reversing Capability Reversing, Overall Height 8.94 in, Overall Width 7.75 in, Auxiliary Contact Module Capacity 7, Terminal Connection Type Screw Terminals, Mounting Style Surface, Series 43, Number of Auxillary Contacts 4, Contactor Style NEMA
