Shop SIEMENS

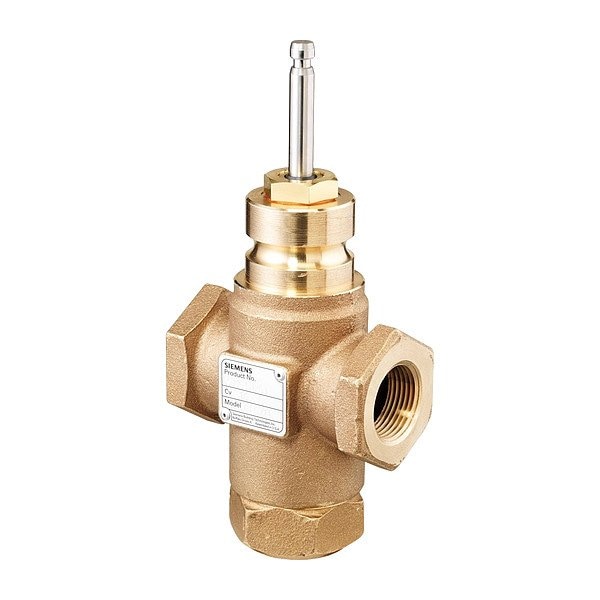

3/4"3W.VLV.BZ, 250, 6.3 CV, WATER

  • Mfr # 599-03202

  • Zoro # G016147598

product price:  $211.34
/ea
Free Shipping & Returns

Key Features

Trim Material
Brass
Overall Length
3 11/32 in
Configuration
Tee
Includes Actuator
Actuator Not Included
Stem Travel
45,720 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
599-03202
Zoro #
G016147598
UPC #
4034106335656
Country of Origin
United States

Dimensions

Overall Length
3 11/32 in
Port Connection Size
45,720 in
Overall Depth
1 1/4 in
Overall Height
6 1/32 in
Wire Rope Length
3 11/32 in

Details

Trim Material
Brass
Configuration
Tee
Item
Hydronic Globe Valve
Includes Actuator
Actuator Not Included
Stem Travel
45,720 in
Body Material
Bronze
Flow Characteristic
Equal Percentage, Linear
ANSI Rating
ANSI Class 250
Body Pattern
Three-Way
Packing Material
EPDM
Port Connection Type
NPT
Gasket Material
EPDM
Actuator Type
Electric/Pneumatic
Leakage Rate
0.0001
Rangeability
Greater Than100:1
Installation Orientation
Horizontal, Vertical
Coefficient of Volume (Cv)
6.3
Seat Material
Metal to Metal
Port Connection Gender
Female
Manufacturer Series
599
Application
Chilled/Hot Water Control
Operating Temperature - Minimum
20 Degrees F
For Media
Water
Product Type
3-Way Mixing Valve
Stem Material
Stainless Steel
Valve Style
Mixing
Operating Temperature - Maximum
250 Degrees F
Valve Action
Normally Closed, Normally Open

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Type Electric/Pneumatic, ANSI Rating ANSI Class 250, Application Chilled/Hot Water Control, Body Material Bronze, Body Pattern Three-Way, Coefficient of Volume (Cv) 6.3, Configuration Tee, Flow Characteristic Equal Percentage, Linear, For Media Water, Gasket Material EPDM, Includes Actuator Actuator Not Included, Installation Orientation Horizontal, Vertical
