  9. Contactor 3P, 40A, 24Vac

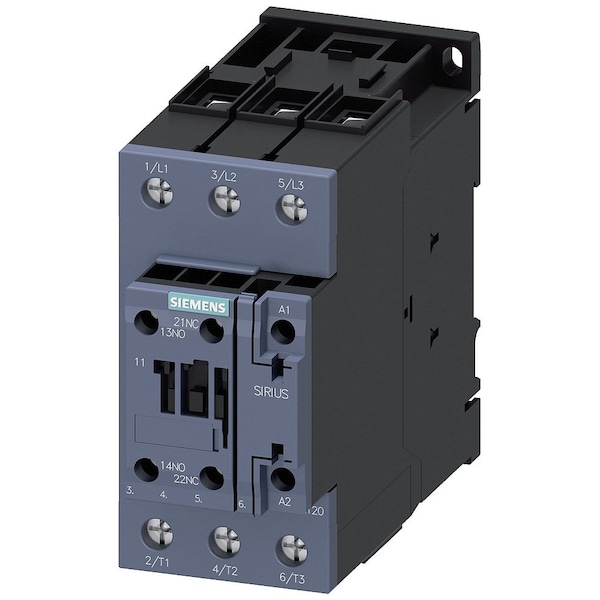

Siemens Contactor 3P, 40A, 24Vac 3RT2035-1AC20 - main

Contactor 3P, 40A, 24Vac

  • Mfr # 3RT2035-1AC20

  • Zoro # G7507838

product price: $300.99
/ea
Free Shipping & Returns

Key Features

Height
114 mm
Width
55 mm
Standards
REACH Art 33, WEEE (2012/19/EU)
Depth
130 mm
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT2035-1AC20
Zoro #
G7507838
UPC #
-
Country of Origin
Germany

Dimensions

Height
114 mm
Width
55 mm
Depth
130 mm
Overall Width
2.19 in
Overall Height
5.65 in
Mounting Hole Diameter
0.2 in
Mounting Hole Distance - Height
3.84 in
Frame Size
S2
Mounting Hole Distance - Width
1.77 in
Overall Depth
4.9 in

Details

Item
IEC Power Contactor
Standards
REACH Art 33, WEEE (2012/19/EU)
Number of Poles
3
Full Load Amps-Resistive
60 A
Aux. Contact Configuration
1NO/1NC
Coil Volts
24 V AC
HP @ 1 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 208V
10 hp
HP @ 1 Phase - 120V
3 hp
HP @ 3 Phase - 480V
30 hp
HP @ 3 Phase - 240V
15 hp
Frame / Series / Class / Code
S2
Hz
50/60
HP @ 3 Phase - 575V
40 hp
Full Load Amps-Inductive
41 A
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Coil Voltage
24V AC
Maximum Voltage Rating
690V AC
Embedded Surge Suppressor
No
Terminal Connection Type
Screw Terminals
Full Load Current - Inductive
41 A
Series
SIRIUS 3RT20
Horsepower @ Three Phase - 208V AC
10 hp
Mounting Postion
Vertical
Mounting Style
Surface
Full Load Current - Resistive
60 A
Horsepower @ Three Phase - 600V AC
40 hp
Contactor Style
IEC
Auxiliary Contact Form
1NC
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 480V AC
30 hp
Number of Auxillary Contacts
2
IP Rating
IP20
Horsepower @ Single Phase - 120V AC
3 hp
Reversing Capability
Non-Reversing
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 240V AC
15 hp
Frequency
50/60 Hz
Minimum Operating Temperature
-13 Degrees F
Mechanical Operating Durability
10,000,000
Number of Normally Open Main Contacts
3

Description

IEC Power Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 41 A, Full Load Current - Resistive 60 A, Reversing Capability Non-Reversing, Overall Height 5.65 in, Overall Width 2.19 in, Terminal Connection Type Screw Terminals, Frame Size S2, Mounting Style Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC
