  11. Control Transformer, 50 VA, 24V AC, 120/240V AC

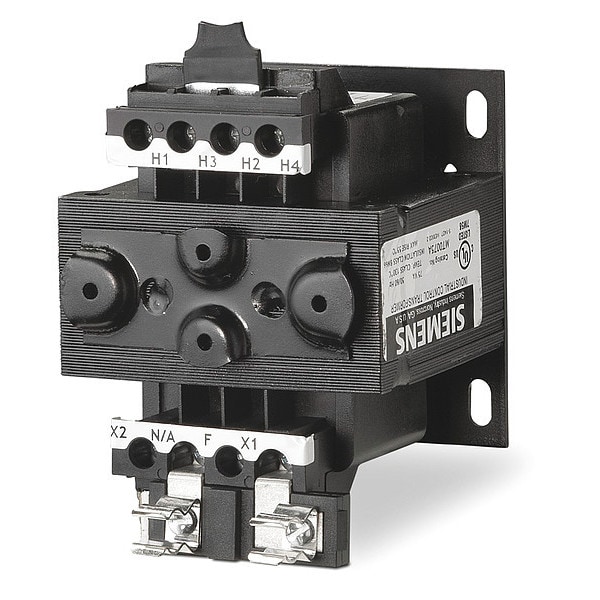

Siemens Control Transformer, 50 VA, 24V AC, 120/240V AC MT0050C - main

CAD Drawings

Download CAD Files

Control Transformer, 50 VA, 24V AC, 120/240V AC

  • Mfr # MT0050C

  • Zoro # G6702394

CAD Available
product price: $109.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
120/240V AC
Output Voltage
24V AC
Power Rating
50 VA
Phase
1
Mounting - Transformer
Foot
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MT0050C
Zoro #
G6702394
UPC #
754554026626
Country of Origin
United States

Dimensions

Overall Height
2.56 in
Overall Width
3 in
Overall Depth
3 in
Manufacturers Warranty Length
1 yr

Details

CAD Available
Yes
Item
Control Transformer
Input Voltage - Transformer
120/240V AC
Output Voltage
24V AC
Power Rating
50 VA
Phase
1
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
Enclosure Finish
No Finish
Enclosure Style - Transformer
Open
Standards
CSA, UL Listed
Enclosure Type
Open
Protective Device
Secondary Fuse
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Primary Connection
Screw Terminals
Secondary Connection
Screw Terminals
Includes
Factory Installed Secondary Fuse
For Fuse Class
CC
Operating Temperature - Maximum
104 Degrees F
Temperature Rise
55°C
Operating Temperature - Minimum
-4 Degrees F

Description

Control Transformer, Input Voltage - Transformer 120V AC, 240V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 50 VA, Protective Device Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish No Finish
