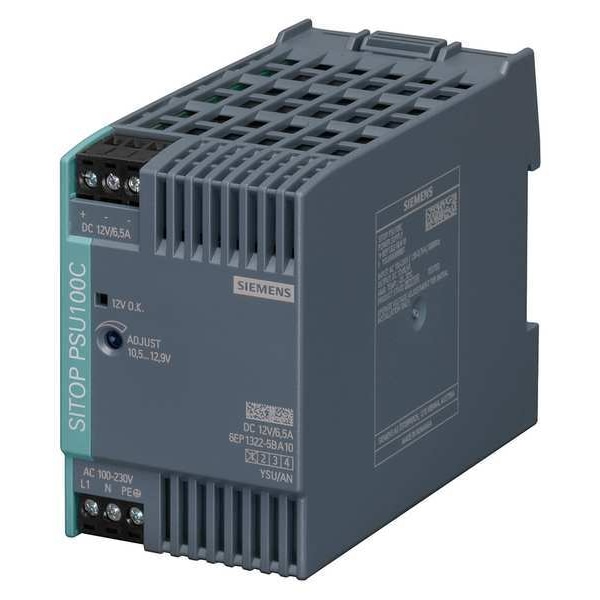

Siemens DC Power Supply, 110/300V DC; 120/230V AC, 12V DC, 78 W, 6.5 A, DIN Rail 6EP13225BA10 - main

DC Power Supply, 110/300V DC; 120/230V AC, 12V DC, 78 W, 6.5 A, DIN Rail

  • Mfr # 6EP13225BA10

  • Zoro # G6606153

product price:  $189.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
110/300V DC; 120/230V AC
Output Voltage - Nominal
12V DC
Output Power - Rated
78 W
Current - Output
6.5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP13225BA10
Zoro #
G6606153
UPC #
040892789416
Country of Origin
Romania

Dimensions

Overall Height
52 mm
Overall Width
80 mm
Overall Depth
100 mm
Height
80 mm
Depth
100 mm
Width
52 mm

Details

Item
DC Power Supply
Input Voltage
110/300V DC; 120/230V AC
Output Voltage - Nominal
12V DC
Output Power - Rated
78 W
Current - Output
6.5 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
Power Rating
78W
Status Indicator
Green LED OK Signal
Output Amps
6.5A
Case Material
Plastic Case
Series
SITOP PSU100C
Phase - Electrical
Single
Output Voltage
12V DC
IP Rating
IP20
Standards
CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Output Noise
200/80mV
Peak Amps
31
Hz
50/60 Hz
Operating Temp. Range
-20 to 70°C
Style
Switching
Hold Up Time
Greater Than 20 msec
Protection
Short-Circuit Proof
Connection
Screw
Regulated / Unregulated
Regulated
Current - Inrush
31 A
Current - Peak
31 A
Operating Temperature - Maximum
158 Degrees F
Special Features
Short Circuit Protection
NEMA Enclosure Rating
1
Wire Connection Type
Screw Terminals
Operating Temperature - Minimum
-4 Degrees F

Description

DC Power Supply, Input Voltage 100 to 230V AC, 110 to 300V DC, Output Voltage 12V DC, Power Rating 78W, Output Amps 6.5, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 80 mm, Width 52 mm, Depth 100 mm, Series SITOP PSU100C, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 31, IP Rating IP20, Output Noise 200/80mV, Hold Up Time Greater Than 20 msec, Status Indicator Green LED OK Signal, NEMA Rating 1, Operating Temp. Range -20 Degrees to 70 Degrees C
