Shop TRIPP LITE

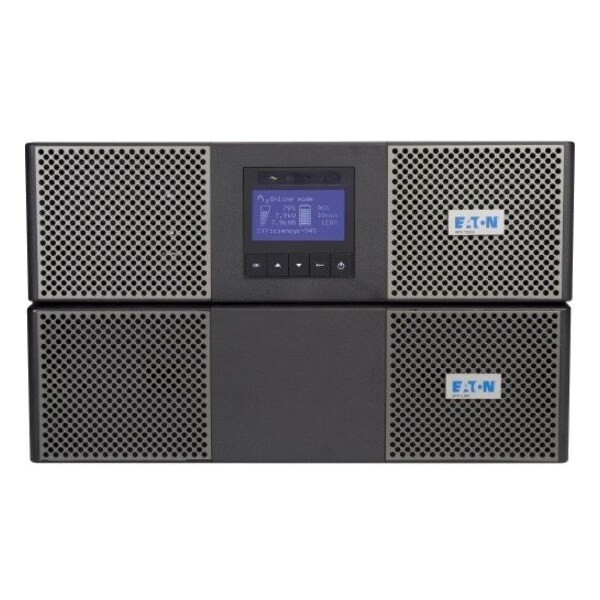

UPS, 10.2 in H, 17.3 in W

  • Mfr # 9PX8K

  • Zoro # G616556912

product price:  $9,250.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

UPS Type
Online Double Conversion
Power Rating
8 kVA
Mounting
Rack, Tower
Wattage
7.2 kW
Number of Outlets - Surge Only
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9PX8K
Zoro #
G616556912
UPC #
743172043504
Country of Origin
Philippines

Dimensions

Overall Width
17.3 in
Overall Depth
30 in
Overall Height
10.2 in

Details

Item
UPS
UPS Type
Online Double Conversion
Power Rating
8 kVA
Mounting
Rack, Tower
Wattage
7.2 kW
Outlet Type
(3) L6-30R, Hardwired
Number of Outlets
3
Number of Outlets - Surge Only
4
Output Voltage
200 V, 208 V, 220 V, 230 V, 240 V, 250 V
Operating Temperature - Minimum
32 Degrees F
Input Voltage
200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Operating Temperature - Maximum
104 Degrees F
Input Current - Maximum
36.6 A
Phase
Single
Run Time - Full Load
5 min
Receptacle Configuration
Hardwired, L6-30R
Power Rating - Real
7,200 W
External Battery Pack Part Number
9PXEBM240RT
Battery Chemistry
Valve Regulated Lead Acid
Includes Battery
Battery Included
Output Ports Included
Pre-Installed Network Card, RS-232, USB
Number of Outlets - UPS
4
Replacement Battery Part Number
744-A1976
External Battery Compatible
External Battery Pack Compatible
Standards
CE (Europe), cUL Listed, EN 62040-2, ENERGY STAR Qualified, FCC (USA), FCC Part 15 Class A (USA), ICC-ES AC156 OSHPD Seismic Certified, NOM (Mexico), RoHS
Run Time - Half Load
16 min
Plug Configuration
Hardwired
Includes
9PX8KPM 9PX 3U UPS Power Module, 9PXEBM240RT 3U Extended Battery Module, Cable Gland for Hardwire Connection, MBP11K208 3U 9PX Maintenance Bypass, NETWORK-M3 Gigabit Network Card, Owner's Manuals, Rack-Mounting Hardware (9RK), RS-232 Cable, USB Cable
Manufacturer Warranty
3 yr Limited
Frequency
50/60 Hz
Audible Alarm Conditions
Low Battery, Overload
Display Type
LCD
Power Rating - Apparent
8,000 VA

Description

UPS, Online Double Conversion, Display Type LCD, Single Phase, Standards CE (Europe), cUL Listed, EN 62040-2, ENERGY STAR Qualified, FCC (USA), FCC Part 15 Class A (USA), ICC-ES AC156 OSHPD Seismic Certified, NOM (Mexico), RoHS, Includes 9PX8KPM 9PX 3U UPS Power Module, 9PXEBM240RT 3U Extended Battery Module, Cable Gland for Hardwire Connection, MBP11K208 3U 9PX Maintenance Bypass, NETWORK-M3 Gigabit Network Card, Owner's Manuals, Rack-Mounting Hardware (9RK), RS-232 Cable, USB Cable
