  9. Electric Actuator, 132 in.-lb., Modulating
Shop All Actuators and Damper Motors
Siemens

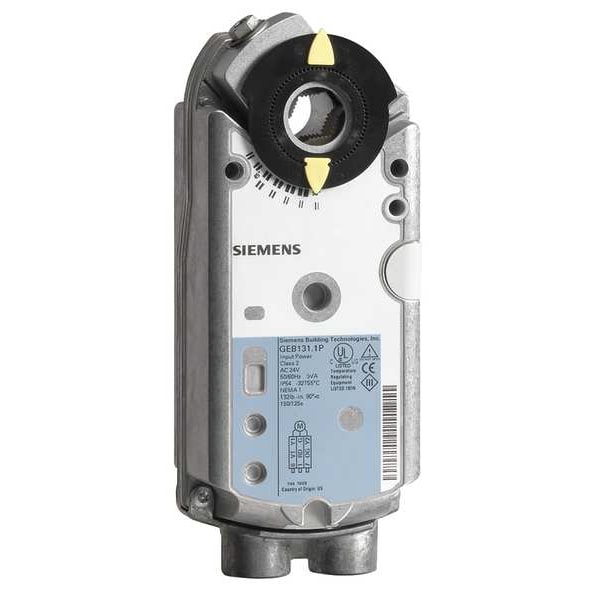

Electric Actuator, 132 in.-lb., Modulating

product price: $289.89
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Non-Spring Return
  • Signal Type Proportional
  • Torque 132 in-lb
  • Voltage 24V AC
See all product information

Product Information

Dimensions

Depth 2 2/3 in
Height 8 3/8 in
Width 3 1/4 in
Overall Width 3 1/4 in
Overall Depth 2 3/8 in
Overall Height 8 3/8 in
For Shaft Width 1/2 in
For Shaft Diameter 3/4 in

Details

Mounting Type Direct Mount
Spring Return Non-Spring Return
Signal Type Proportional
Torque 132 in-lb
Voltage 24V AC
Ambient Temp. Range -25 Degrees to 130 Degrees F
Item Actuator
Motor Direction CW or CCW
Timing 125 sec
Power Consumption 5 VA
Stroke Deg. 90
For Use With Dampers
Electrical Connections 3 ft 18 AWG Lead
Shaft Type Self-Centering
Includes Mounting Bracket
Replaces Honeywell Motors Mfr. No. MN7220A2007
Stroke Degree 90 Degrees
Weight 2.2 lb
Product Type Actuator
For Shaft Shape Round, Square
Maximum Operating Temperature 130 Degrees F
For Use With Building Automation Systems Building Automation System Compatible
Output Signal 0 to 10V DC
Electrical Connection Type Hardwired
Standards CE Certified, cULus Listed
Housing Material Aluminum
NEMA Rating 1
Minimum Operating Temperature -25 Degrees F
IP Rating IP63
Time to Close 150 sec
Shaft Rotation CW/CCW
Valve Application Damper
Number of Auxiliary Switches 0
Rated Torque 132 in-lb
Input Voltage 24V AC/DC
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 132 in-lb, Input Voltage 24V AC/DC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP63, Spring Return Non-Spring Return, Time to Close 150 sec, Shaft Type Self-Centering, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
