  9. Electric Actuator, 310 in.-lb., Modulating
Shop All Actuators and Damper Motors
Siemens

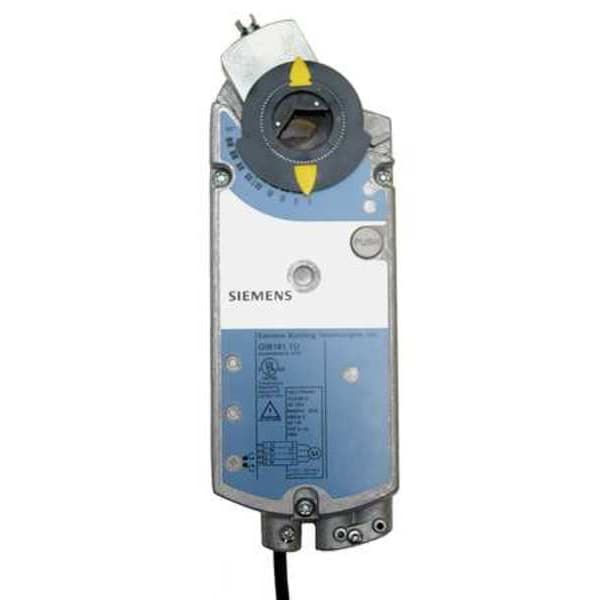

Electric Actuator, 310 in.-lb., Modulating

product price: $344.40
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Non-Spring Return
  • Signal Type Proportional
  • Torque 310 in-lb
  • Voltage 24V AC
See all product information

Product Information

Dimensions

Height 11 13/16 in
Width 3 15/16 in
Depth 2 11/16 in
For Shaft Height 3/4 in
Overall Depth 2 3/4 in
Overall Width 4 in
For Shaft Diameter 1 in
Overall Height 11 3/4 in

Details

Mounting Type Direct Mount
Spring Return Non-Spring Return
Signal Type Proportional
Torque 310 in-lb
Voltage 24V AC
Includes Mounting Bracket
Ambient Temp. Range -25 Degrees to 130 Degrees F
Stroke Deg. 90
Electrical Connections 3 ft 18 AWG Lead
Replaces Honeywell Motors Mfr. No. MN7234A2008
Item Actuator
Power Consumption 8 VA
Timing 125 sec
Motor Direction CW or CCW
Shaft Type Self-Centering
For Use With Dampers
Weight 4.4 lb
Valve Application Damper
Maximum Operating Temperature 130 Degrees F
NEMA Rating 2
Input Voltage 24V AC/DC
For Use With Building Automation Systems Building Automation System Compatible
Rated Torque 310 in-lb
For Shaft Shape Round, Square
Product Type Actuator
Number of Auxiliary Switches 0
Output Signal 0 to 10V DC
IP Rating IP54
Standards C-UL Listed (C22.2 No. 24-93) Listed, CE Certified Electromagnetic Compatibility 2004/108/EC, Low-Voltage Directive 2006/95/EC, UL Listed 873
Shaft Rotation CW/CCW
Time to Close 125 sec
Electrical Connection Type Hardwired
Stroke Degree 90 Degrees
Power Rating 8W
Housing Material Aluminum
Minimum Operating Temperature -25 Degrees F
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 310 in-lb, Input Voltage 24V AC/DC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Non-Spring Return, Time to Close 125 sec, Shaft Type Self-Centering, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
