Shop All Actuators and Damper Motors
Siemens

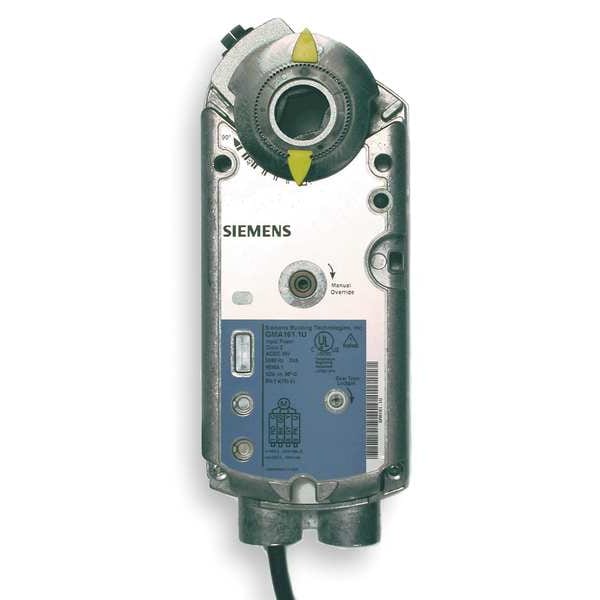

Electric Actuator, 62 in.-lb., Modulating

product price: $261.63
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Spring Return
  • Signal Type Proportional
  • Torque 62 in-lb
  • Voltage 24V AC/DC
See all product information

Product Information

Dimensions

Width 3 1/4 in
Depth 2 2/3 in
Height 8 3/4 in
Overall Height 8 3/8 in
For Shaft Width 1/2 in
For Shaft Diameter 3/4 in
Overall Depth 2 3/8 in
For Shaft Height 1/2 in
Overall Width 3 1/4 in

Details

Mounting Type Direct Mount
Spring Return Spring Return
Signal Type Proportional
Torque 62 in-lb
Voltage 24V AC/DC
Power Consumption 5 VA
Stroke Deg. 90
Motor Direction CW or CCW
Includes Mounting Bracket
Item Actuator
Timing 90 sec
Replaces Honeywell Motors Mfr. No. MS7510A2008
Electrical Connections 3 ft 18 AWG Lead
Ambient Temp. Range -25 Degrees to 130 Degrees F
For Use With Valves and Dampers
Shaft Type Self-Centering Shaft Coupling
Electrical Connection Type Hardwired
Plenum Rating Plenum Rated
Time to Open 90 sec
Minimum Operating Temperature -25 Degrees F
Input Voltage 24V AC/DC
Output Signal 0 to 10V DC
IP Rating IP54
Rated Torque 62 in-lb
Number of Auxiliary Switches 0
For Shaft Shape Round, Square
For Use With Building Automation Systems Building Automation System Compatible
Maximum Operating Temperature 130 Degrees F
Stroke Degree 90 Degrees
Power Rating 3.5W
Product Type Actuator
Valve Application Damper
Weight 2.9 lb
Shaft Rotation CW/CCW
Housing Material Aluminum
Standards CSA Certified, cUL (C22.2 No. 24-93) Listed, UL Listed, UL 60730
NEMA Rating 1
Time to Close 15 sec
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 62 in-lb, Input Voltage 24V AC/DC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP54, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Self-Centering Shaft Coupling, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
