Shop SIEMENS

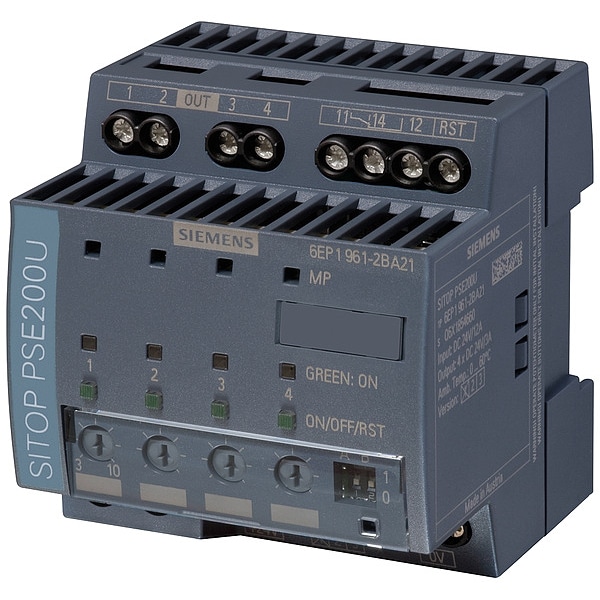

Electronic Diagnostic Module, 22/30V DC, 24V DC, 960W, 40A, DIN Rail

  • Mfr # 6EP1961-2BA21

  • Zoro # G4216764

product price:
$
359.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
22/30V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
960W
Current - Output
40 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6EP1961-2BA21
Zoro #
G4216764
UPC #
662643533286
Country of Origin
Romania

Dimensions

Overall Height
3.19 in
Overall Width
3.27 in
Overall Depth
2.84 in
Width
2.83 in
Depth
2.83 in
Height
3.14 in

Details

Item
Electronic Diagnostic Module
Input Voltage
22/30V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
960W
Current - Output
40 A
Mounting
DIN Rail
Housing Material
Plastic
For Use With
Siemens SITOP Series DC Power Supplies
Case Material
Plastic Case
Status Indicator
Green LED (Output Switched Through), Red LED (Output Switched Off Due to Overcurrent), Yellow LED (Output Switched Off Manually)
Peak Amps
40 A
Power Rating
960W
Output Amps
40A
Operating Temp. Range
32 to 140°F
Output Voltage
24V DC
Hz
0 Hz
Standards
CB Scheme, CE, cULus Listed (UL 508, CSA C22.2 No. 107.1) File E197259, EAC Approval, UL Listed, UL Recognized (UL 2367) File E328600
Output Current
10 A
Protection
Direct Voltage Overcurrent Protection
Connection
Screw
Operating Temperature - Minimum
-25 Degrees C
Compatible with Series
SITOP
Operating Temperature - Maximum
60 Degrees C
Power Rating - Real
10 W
Accessory Type
Selectivity Module

Description

Selectivity Module, For Use With Siemens SITOP Series DC Power Supplies, Mounting Type DIN Rail, Input Voltage 24V DC, Power Rating 960W, Voltage Output 24V DC, Amps 10 per Channel, Peak Amps 40 A, Status Indicator Green LED (Output Switched Through), Red LED (Output Switched Off Due to Overcurrent), Yellow LED (Output Switched Off Manually), Case Material Plastic, Height 3.14 in, Width 2.83 in, Depth 2.83 in, Temp. Range 32 to 140 Degrees F
