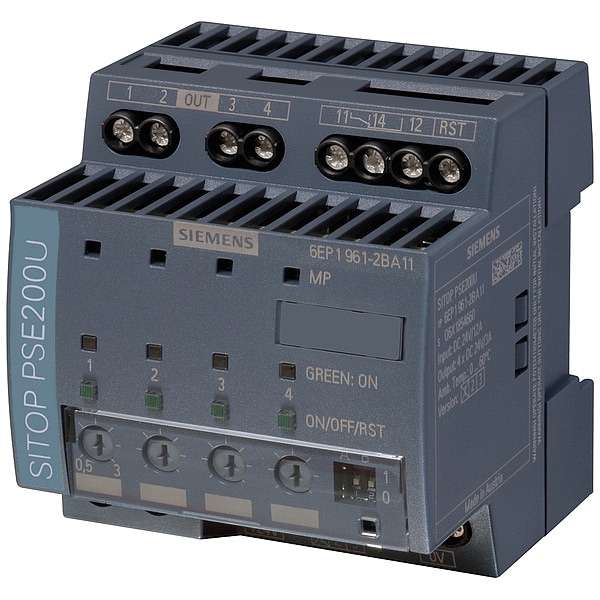

Siemens Electronic Diagnostic Module, 22/30V DC, 24V DC, 288W, 12A, DIN Rail 6EP1961-2BA11 - main

Electronic Diagnostic Module, 22/30V DC, 24V DC, 288W, 12A, DIN Rail

  • Mfr # 6EP1961-2BA11

  • Zoro # G3972552

original price:  $289.99 , new price: $267.99 , 7 percent off
new price:  $267.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
22/30V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
288W
Current - Output
12A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6EP1961-2BA11
Zoro #
G3972552
UPC #
040892692716
Country of Origin
Romania

Dimensions

Overall Height
2.83 in
Overall Width
3.14 in
Overall Depth
2.83 in
Height
3.14 in
Depth
2.83 in
Width
2.83 in

Details

Item
Electronic Diagnostic Module
Input Voltage
22/30V DC
Output Voltage - Nominal
24V DC
Output Power - Rated
288W
Current - Output
12A
Mounting
DIN Rail
Housing Material
Plastic
Power Rating
288W
For Use With
Siemens SITOP Series DC Power Supplies
Status Indicator
Green LED (Output Switched Through), Red LED (Output Switched Off Due to Overcurrent), Yellow LED (Output Switched Off Manually)
Peak Amps
12 A
Case Material
Plastic Case
Output Voltage
24V DC
Output Amps
12A
Operating Temp. Range
32 to 140°F
Standards
CB Scheme, CE, cULus Listed (UL 508, CSA C22.2 No. 107.1) File E197259, EAC Approval, UL Listed, UL Recognized (UL 2367) File E328600
Hz
0 Hz
Protection
Direct Voltage Overcurrent Protection
Output Current
3 A
Connection
Screw
Operating Temperature - Minimum
-25 Degrees C
Compatible with Series
SITOP
Operating Temperature - Maximum
60 Degrees C

Description

Selectivity Module, For Use With Siemens SITOP Series DC Power Supplies, Mounting Type DIN Rail, Input Voltage 24V DC, Power Rating 288W, Voltage Output 24V DC, Amps 3 per Channel, Peak Amps 12 A, Status Indicator Green LED (Output Switched Through), Red LED (Output Switched Off Due to Overcurrent), Yellow LED (Output Switched Off Manually), Case Material Plastic, Height 3.14 in, Width 2.83 in, Depth 2.83 in, Temp. Range 32 to 140 Degrees F
