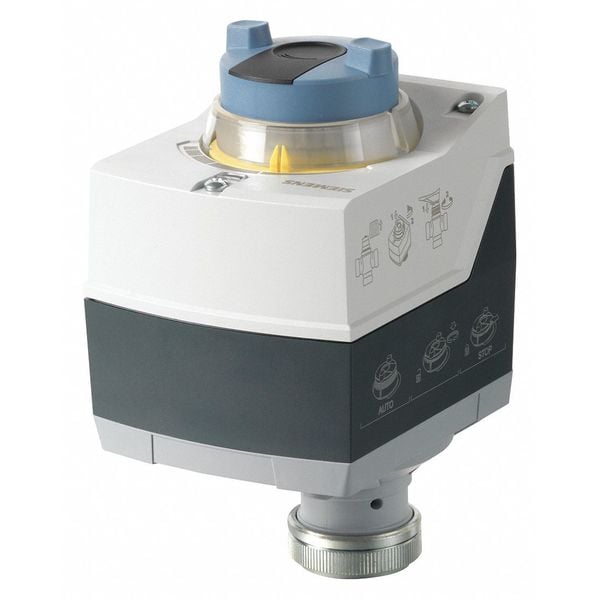

Electronic Valve Actuator, Non Spring
- Mfr # SAS61.03U
- Zoro # G5541991
product price:Â
$
223.98
/ea
Free Shipping & Returns
Key Features
Torque
90 in-lb
Voltage
24V AC, 24V DC
Cycle Time
30 sec
Power Consumption
5.3 VA
Overall Height
5 7/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SAS61.03U
- Zoro #
- G5541991
- UPC #
- -
- Country of Origin
- Switzerland
- Torque
- 90 in-lb
- Voltage
- 24V AC, 24V DC
- Item
- Actuator
- Cycle Time
- 30 sec
- Power Consumption
- 5.3 VA
- Housing Material
- Plastic
- Electrical Connection Type
- Cable
- Includes Electrical Leads
- Electrical Leads Not Included
- NEMA Rating
- 1
- Operating Temperature - Minimum
- 23 Degrees F
- Compatible Valve Body Pattern
- Three-Way, Two-Way
- Compatible Close-Off Pressure
- 160 psi
- Return Action
- Non-Spring Return
- Application
- HVAC Systems, Steam Control
- Product Type
- Electric Valve Actuator
- Operating Temperature - Maximum
- 131 Degrees F
- Control Signal
- Proportional
- Standards
- CSA C22.2 No. 24-93, UL 873, UL/cUL
- Compatible Valve Action
- Normally Closed, Normally Open
- Frequency
- 45 to 65 Hz
- Auxiliary Contact Form
- SPST
Description
Actuator, Application HVAC Systems, Steam Control, Auxiliary Contact Form SPST, Compatible Close-Off Pressure 160 psi, Compatible Valve Action Normally Closed, Normally Open, Compatible Valve Body Pattern Three-Way, Two-Way, Control Signal Proportional, Cycle Time 30 sec, Electrical Connection Type Cable, Electrical Lead Length Not Applicable, Frequency 45 to 65 Hz, Housing Material Plastic, Includes Electrical Leads Electrical Leads Not Included, NEMA Rating 1
