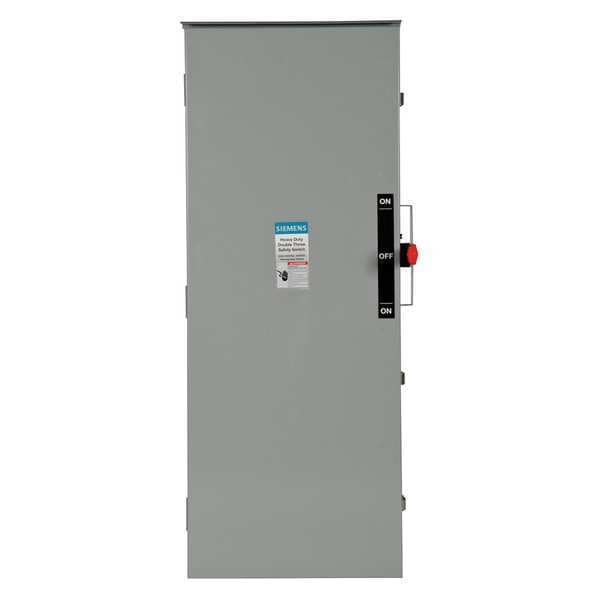

Fusible, Safety Switch, Heavy Duty, 600 V, 3PST
Mfr # DTF364R
Zoro # G8652271
CAD Available
product price: $5,428.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.
Key Features
CAD Drawing
Protection Method
Fusible
Contact Form
3PST
Current Rating
200 A
Phase
Three
For Fuse Class
Class H, R, T
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DTF364R
Zoro #
G8652271
UPC #
783643454002
Country of Origin
Mexico
Dimensions
Depth
8.9 in
Height
50.1 in
Width
21.1 in
Maximum Enclosure Depth
49.44 in
Minimum Enclosure Depth
19.12 in
Maximum Mounting Depth
44.5 in
Minimum Mounting Depth
15 in
Description
Safety Switch, Contact Form 3PDT, Current Rating 200 A, Depth 8 7/8 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, For Fuse Class Class H, Class J, Class R, Class T, Height 50 1/8 in, Horsepower @ 600V AC 150 hp, Housing Material Steel, IP Rating IP14, Maximum Enclosure Depth 49.44 in, Maximum Mounting Depth 44.5 in, Minimum Enclosure Depth 19.12 in, Minimum Mounting Depth 15 in, Mounting Style Surface Mount, NEMA Enclosure Rating 3R, Number of Mounting Holes 3
