Shop SIEMENS

HMI

  • Mfr # 6AG1134-6JD00-2CA1

  • Zoro # G609018786

product price:
$
1,095.99
/ea
Free Shipping & Returns

Key Features

Height
73 millimetre
Width
15 millimetre
Depth
58 millimetre
Field bus connection possible via separate bus couplers
Yes
Input, current present
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6AG1134-6JD00-2CA1
Zoro #
G609018786
UPC #
-
Country of Origin
Germany

Dimensions

Height
73 millimetre
Width
15 millimetre
Depth
58 millimetre

Details

Field bus connection possible via separate bus couplers
Yes
Input, current present
No
Number of analog inputs
4
max. supply voltage with DC
28.8 volt
Resolution of the analog inputs
16 bit
Input signal can be configured
Yes
Number of HW interfaces serial RS485
0
Input, thermoelement present
Yes
Number of analog outputs
0
Supply voltage type
DC
Input, resistance thermometer present
Yes
Number of HW interfaces Industrial Ethernet
0
Number of HW interfaces Wireless
0
Number of HW interfaces serial RS422
0
min. supply voltage with DC
19 volt
Front installation possible
Yes
Input, voltage present
Yes
Power loss, static, current-independent [Pls]
1 watt
Manufacturer product family
ET 200SP
Bearing track assembly possible
Yes
Rack-assembly possible
Yes
Manufacturer product root
Analog module input
Number of HW interfaces serial TTY
0
Number of HW interfaces parallel
0
description of product type
AI 4xRTD/TC 2-/3-/4-wire HF
wall mounting/direct mounting possible
No
IO-link master present
No
System components present
Yes
analog inputs, configurable
Yes
Number of HW interfaces, other
0
Number of HW interfaces serial RS232
0
Input, resistance present
Yes
Protection type IP
IP20

Description

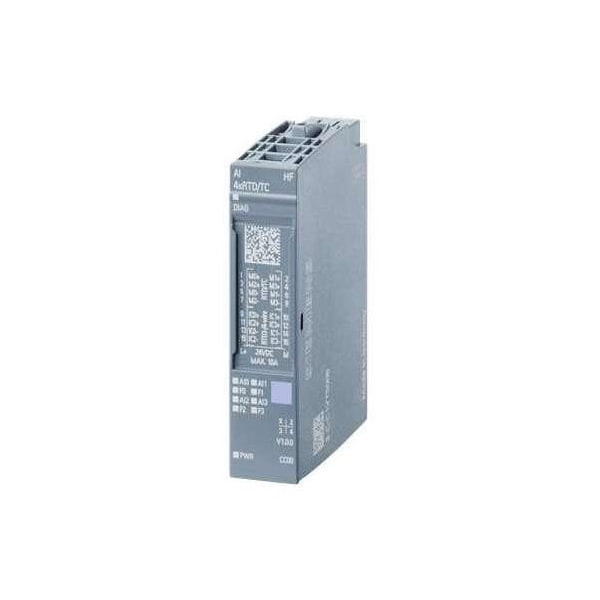

SIPLUS ET 200SP AI 4xRTD/TC high feature based on 6ES7134-6JD00-0CA1 with conformal coating, -40+60 DegC, analog input module, suitable for BU type A0, A1, color code CC00, channel diagnostics, 16-bit, +/-0.1%, 2/3/4-wire
