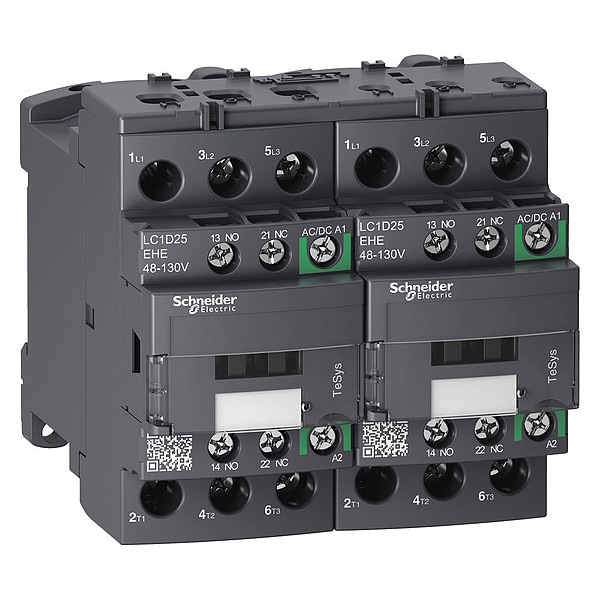

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D25EHE

  • Zoro # G6044339

product price:  $283.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC2D25EHE
Zoro #
G6044339
UPC #
03606480988004
Country of Origin
Korea, Republic of

Dimensions

Overall Height
3.35 in
Overall Width
3.54 in
Overall Depth
3.62 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 3 Phase - 575V
20 hp
Frame / Series / Class / Code
TeSys
Reversing
Yes
Enclosure NEMA Rating
No Enclosure
Series
TeSys Deca
IP Rating
IP20
Number of Normally Open Main Contacts
3
Full Load Current - Resistive
40 A
Minimum Operating Temperature
-40 Degrees F
Mechanical Operating Durability
15,000,000
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Electrical Operating Durability
2,000,000, 900,000
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Single Phase - 120V AC
2 hp
Embedded Surge Suppressor
No
Mounting Style
DIN Rail, Plate
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Three Phase - 600V AC
20 hp
Full Load Current - Inductive
25 A
Includes Auxiliary Contacts
Yes
Contactor Style
IEC
Switching Current
5 mA (Signalling Circuit)
Tightening Torque
1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
Switching Voltage
17 V (Signalling Circuit)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Overvoltage Category
CAT III
Signalling Circuit Frequency
25 to 400 Hz
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Includes Protective Cover
Yes
Fire Rating
UL 94 V1
Operating Speed
3600 cycles per hr
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Inrush VA
25 VA
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Hold VA
1.3 VA
Rated Insulation Volts
690V
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Mechanical Durability
15 Mcycles
Watts Loss
0.8W
Rated Short-Time Withstand Current
50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Impulse Withstand Voltage
6 kV
Rated Breaking Capacity
450 A @ 440V
Application
Motor Control, Resistive Load
Net Weight
0.913 kg
Electrical Durability
2 Mcycles (21 A, AC-3, Less than 440 V); 0.9 Mcycles (40 A, AC-1, Less than 440 V)
Impedance
2 mOhm
Environmental Attributes
Mercury Free, Pollution Degree 3
Max. Operating Watts
5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415V AC 50 Hz), 11 kW (at 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz)
Non-Overlap Time
1.5 ms
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit)

Description

Schneider Electric IEC Magnetic Contactor, 3-pole reversing type, with 1NC/1NO auxiliary contacts and a coil rated 48–130 V AC/DC. It is an IEC-style magnetic contactor rated for switching motor and resistive loads within specified parameters, using screw clamp terminals for wiring. The unit is part of the TeSys Deca family, does not include an enclosure and an IP20 rating.

Poles and reversing: 3 poles; Reversing: Yes

  • Auxiliary contacts: 2 total (1NO/1NC); Includes auxiliary contacts: Yes
  • Coil voltage: 48–130 V AC/DC
  • Electrical connection: Screw Clamp Terminals
  • Frame/Series: TeSys Deca (TeSys)
  • Voltage rating: rated for operation up to 690V AC within specified conditions
  • Frequency: 50/60 Hz
  • Application: suitable for motor control and resistive load applications when used according to specifications
  • IP / enclosure: IP20; does not include an enclosure
  • Weight and size: Net weight 0.913 kg; Overall dimensions (Depth x Height x Width): 3.62 in x 3.35 in x 3.54 in
  • Full load amps (loads): rated for full load currents of up to 40 A resistive and 25 A inductive under specified conditions
  • Rated making capacity: as specified under standard testing conditions
  • Operating/durability: tested for electrical and mechanical durability within standardized testing protocols
  • Protective features: Built-in protective cover: Yes
  • Operating times: 45–55 ms (closing); 20–90 ms (opening)
  • Temperature ratings: operates within the specified temperature ranges
