Shop SIEMENS

HMI

  • Mfr # 6AV2123-2GA03-0AX0

  • Zoro # G609018830

product price:  $1,501.99
/ea
Free Shipping & Returns

Key Features

numeric keyboard present
Yes
Number of online languages.
10
Number of HW interfaces serial RS485
1
Pressure output present
No
max. number of pixels, horizontal
800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6AV2123-2GA03-0AX0
Zoro #
G609018830
UPC #
-
Country of Origin
Germany

Dimensions

Width of front
214 millimetre
Height of front
158 millimetre
Installation depth
39 millimetre

Details

numeric keyboard present
Yes
Number of online languages.
10
Number of HW interfaces serial RS485
1
Pressure output present
No
max. number of pixels, horizontal
800
max. number of pixels, vertical
480
Bearing track assembly possible
No
number of programmable function keys
8
min. supply voltage with DC
19 volt
number of buttons with LED
0
description of product type
KTP700 Basic color DP
useable project memory/user memory
10000 kilobyte
Touch screen present
Yes
Max. operating temperature
50 degree_Celsius
Process value display (output) possible
Yes
Manufacturer product family
HMI
Additional software components, loadable present
No
Number of HW interfaces, other
0
Number of colors/shades of gray of the display
65536
Display type
TFT
Number of HW interfaces serial RS232
0
Monitor diagonal
7 inch
Message display present
Yes
max. supply voltage with DC
28.8 volt
Number of HW interfaces PROFINET
0
Number of HW interfaces serial TTY
0
Alpha keyboard present
Yes
Display, color present
Yes
number of grey scales
0
Number of HW interfaces Wireless
0
SW interfaces present
No
wall mounting/direct mounting possible
No
Process value provision (input) possible
Yes
Number of HW interfaces parallel
0
IO-link master present
No
Formulations present
Yes
Number of levels, password protection
50
Min. operating temperature
0 degree_Celsius
Messaging system (including buffer and acknowledgement) present
Yes
number of system buttons
0
Degree of protection (IP), front side
IP65
Number of HW interfaces serial RS422
1
Supply voltage type
DC
Number of HW interfaces Industrial Ethernet
0
Manufacturer product root
Basic Panel

Description

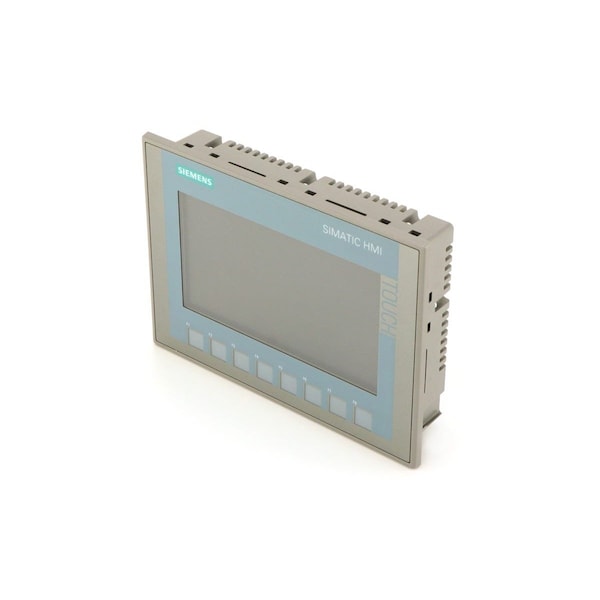

SIMATIC , KTP700 Basic DP, Basic Panel, Key/touch operation, 7 TFT display, 65536 colors, PROFIBUS interface, configurable as of WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
