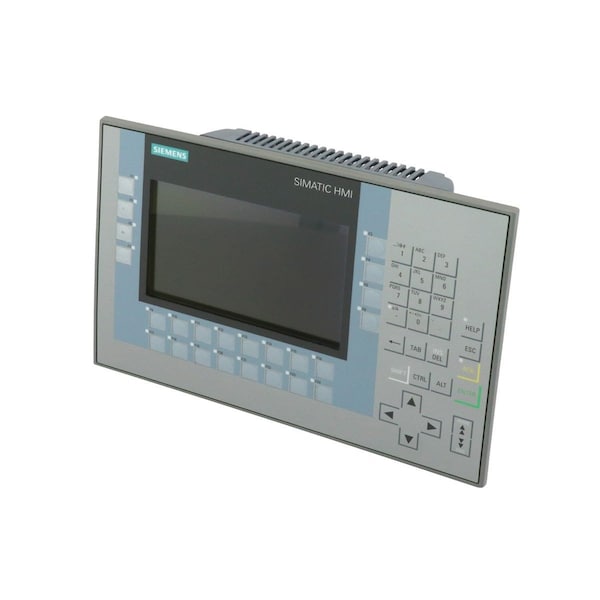

Siemens HMI 6AV2124-1GC01-0AX0 - main

HMI

  • Mfr # 6AV2124-1GC01-0AX0

  • Zoro # G009018843

product price: $2,894.99
/ea
Free Shipping & Returns

Key Features

Degree of protection (IP), front side
IP65
description of product type
KP700 Comfort
Touch screen present
No
Display type
TFT
Number of HW interfaces, other
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6AV2124-1GC01-0AX0
Zoro #
G009018843
UPC #
-
Country of Origin
Germany

Dimensions

Height of front
204 millimetre
Installation depth
63 millimetre
Width of front
308 millimetre

Details

Degree of protection (IP), front side
IP65
description of product type
KP700 Comfort
Touch screen present
No
Display type
TFT
Number of HW interfaces, other
0
SW interfaces present
No
Number of HW interfaces serial RS485
1
Number of HW interfaces PROFINET
2
Display, color present
Yes
Bearing track assembly possible
No
number of system buttons
28
useable project memory/user memory
12000 kilobyte
Message display present
Yes
Number of HW interfaces Industrial Ethernet
1
Number of levels, password protection
50
max. number of pixels, vertical
480
wall mounting/direct mounting possible
No
Manufacturer product family
HMI
Number of HW interfaces serial TTY
0
Monitor diagonal
7 inch
Number of HW interfaces parallel
0
Additional software components, loadable present
Yes
max. supply voltage with DC
28.8 volt
min. supply voltage with DC
19 volt
max. number of pixels, horizontal
800
Number of online languages.
32
Messaging system (including buffer and acknowledgement) present
Yes
Alpha keyboard present
Yes
Supply voltage type
DC
Number of HW interfaces Wireless
0
number of grey scales
0
Pressure output present
Yes
number of programmable function keys
24
IO-link master present
No
Min. operating temperature
0 degree_Celsius
Number of colors/shades of gray of the display
16777216
Process value display (output) possible
Yes
Number of HW interfaces serial RS232
0
Process value provision (input) possible
Yes
Number of HW interfaces serial RS422
1
Formulations present
Yes
Max. operating temperature
50 degree_Celsius
numeric keyboard present
Yes
number of buttons with LED
24
Manufacturer product root
Comfort Panel

Description

SIMATIC KP700 Comfort, Comfort Panel, key operation, 7 widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
